Drill bushing - DIN 172 A | SM 1001 A

SCHOLZ MECHANIK GmbH

from €2.76*

€3.03*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

Delivery time: See variant in the table

This product is available in 2104 versions.

Show all variants

Form

Inside Diameter

30,75

Length

45,00

Outside Diameter

48,00

Product number: 1781

Description Datasheet CAD data

Form	Inside Diameter	Length	Outside Diameter	Product number	Unit price	Buy

Product information "Drill bushing - DIN 172 A | SM 1001 A"

Positioning bush
DIN 172 / ISO 4247 Form A
with collar, hardened

Material: Special steel
hardened and ground
Hardness: HRc 63±1

Form A: with one radius without grooves
Form B: with two radiuses without grooves
you will find as an extra article Drill bushing - DIN 172 B | SM 1001 B

RoHS-compliant: yes

Locating hole in the workpiece to ISO tolerance H6 or H7.
For other dimension combinations, see SM 1002.

Drill bushes from SCHOLZ MECHANIK are used in all manufacturing companies as a cost-effective and wear-resistant component. No longer just for precise drill guidance, but also in combination with new production processes - e.g. 3D printing - the drill bush can be used to quickly produce clamping fixtures, measuring gauges, clamping supports, etc.

Drill positioning bushes are important and useful elements for placement and grid plates for turning and milling centres. Their high hardness and tight tolerances ensure very high repeat accuracy and a long service life.

on request

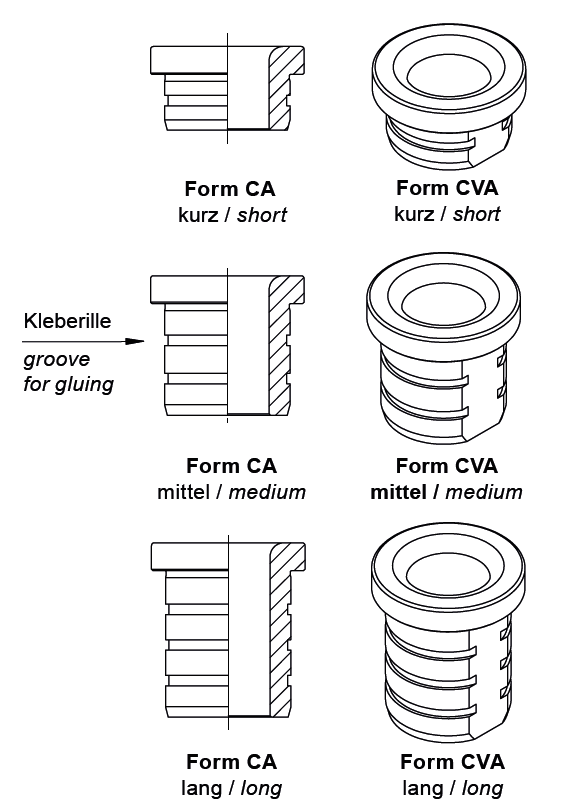

Form CA: with one radius, additionally with grooves for gluing
Form CB: with two radiuses, additionally with grooves for gluing
Form CVA: with one radius, additionally with grooves fand locking device
Form CVB: with two radiuses, additionally with grooves fand locking device

CAD data
