SUPERCRAFT Soft-face hammer | SM 3377A

SCHOLZ MECHANIK GmbH

from €38.23*

€38.23*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

Delivery time: See variant in the table

This product is available in 8 versions.

Show all variants

Form

Head diameter

25,00

30,00

35,00

40,00

45,00

50,00

60,00

70,00

Product number: 240054

Description Datasheet

Form	Head diameter	Product number	Unit price	Buy

Product information "SUPERCRAFT Soft-face hammer | SM 3377A"

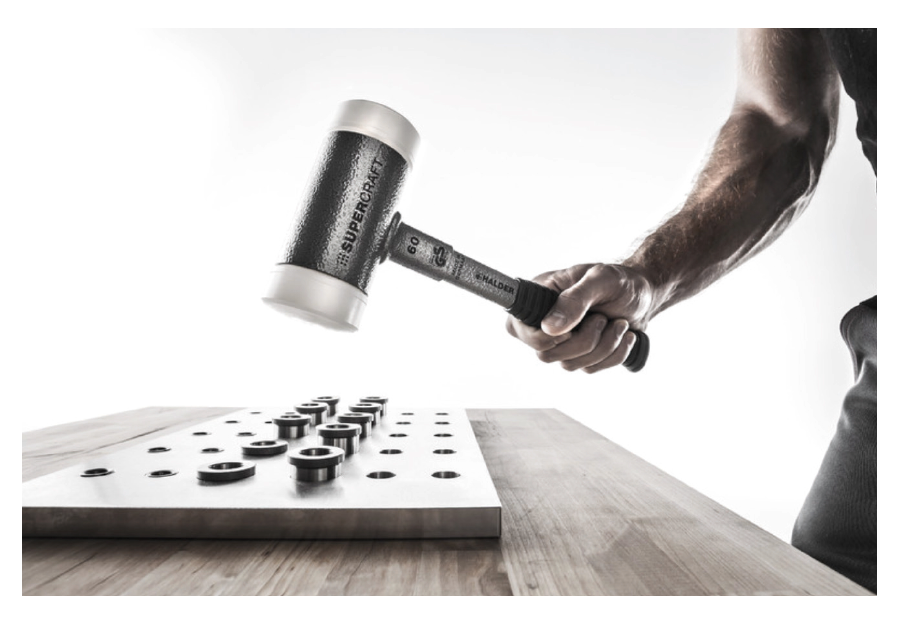

SUPERCRAFT Soft-face hammer with vibration-reducing

Tubular head: fi lled with steel shot
Handle: steel tube and ergonomic rubber grip
Impact inserts: Nylon, white

Note:
Non-rebound, for extra powerful strikes | Noise-dampening and gentle on the joints | Completely robot-welded | Very safe handle-head-connection due to aluminium wedge and safety pin | Wear-resistant powder coating prevents corrosion | Inserts made of special nylon with maximum strength | No chipping (even at tempeatures below zero) | Break-proof steel tube handle with ergonomic non-slip rubber grip | Handle protection sleeve acts as an overstrike protector | Handle and inserts are replaceable

The tubular head of the SUPERCRAFT mallets is fi lled with steel shot. The resulting effect is that the energy of the steel shot is transferred with a slight delay when the mallet's contact surface hits the workpiece. The reduced rebound allows the impact energy to be absorbed with perfect effi ciency. The result is impact of exceptional magnitude. Working with SUPERCRAFT sledge hammers is much safer, easier on the joints and quieter than with ordinary steel hammers.

Application Areas:
Positioning and joining of workpieces, assembly of sharp-edged workpieces, straightening work, housing assembly, plant construction, maintenance, repair and overhaul work, assembly and repair work in the automotive and truck sector, sheet-metal working

Material:	Steel
