Drill bushing - DIN 179 A | SM 1000 A
from €1.42*
€5.18*
Delivery time: 1-3 days working days
Delivery time: See variant in the table
This product is available in 1758 versions.
Product information "Drill bushing - DIN 179 A | SM 1000 A"
Positioning bush
DIN 179 / ISO 4247 Form A
cylindrical, hardened
Material: Special steel
hardened and ground
Hardness: HRc 63±1
hardened and ground
Hardness: HRc 63±1

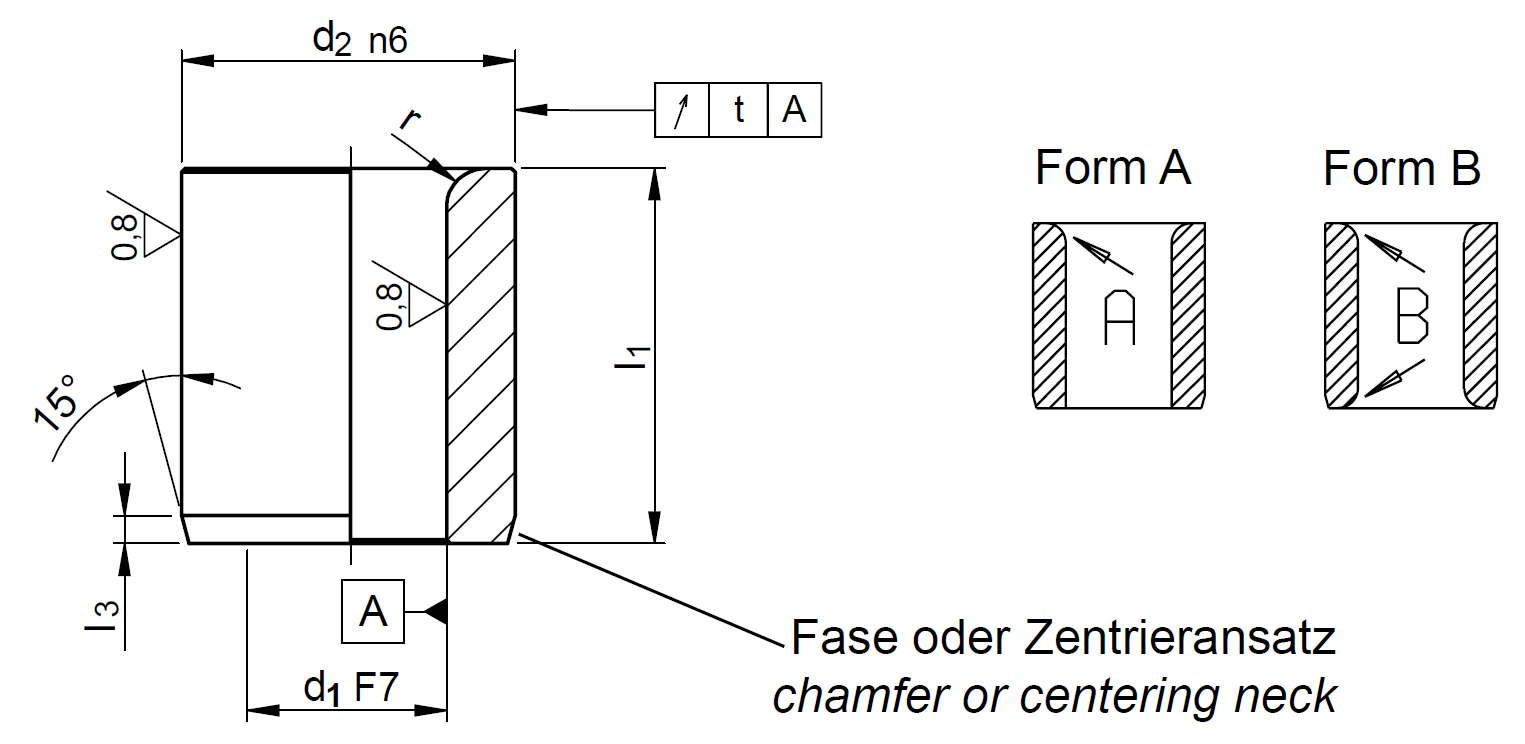

Form A: with one radius without grooves
Form B: with two radiuses without grooves
you will find as an extra article Drill bushing DIN 179 B | SM 1000 B
Form B: with two radiuses without grooves
you will find as an extra article Drill bushing DIN 179 B | SM 1000 B
RoHS-compliant: yes
Locating hole in the workpiece to ISO tolerance H6 or H7.
For other dimension combinations, see SM 1005.
For other dimension combinations, see SM 1005.
Drill bushes from SCHOLZ MECHANIK are used in all manufacturing companies as a cost-effective and wear-resistant component. No longer just for precise drill guidance, but also in combination with new production processes - e.g. 3D printing - the drill bush can be used to quickly produce clamping fixtures, measuring gauges, clamping supports, etc.

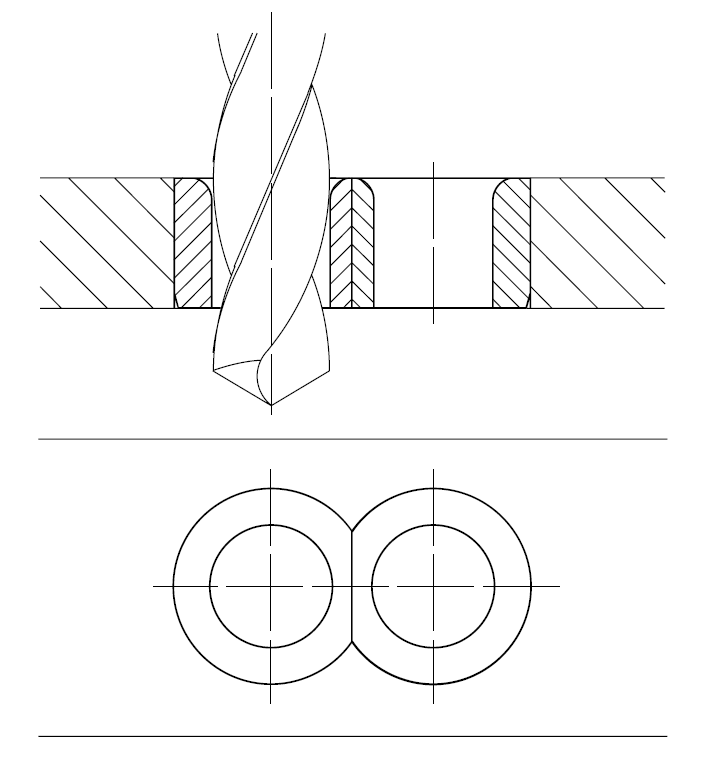

Drill positioning bushes are important and useful elements for placement and grid plates for turning and milling centres. Their high hardness and tight tolerances ensure very high repeat accuracy and a long service life.
Assembly:

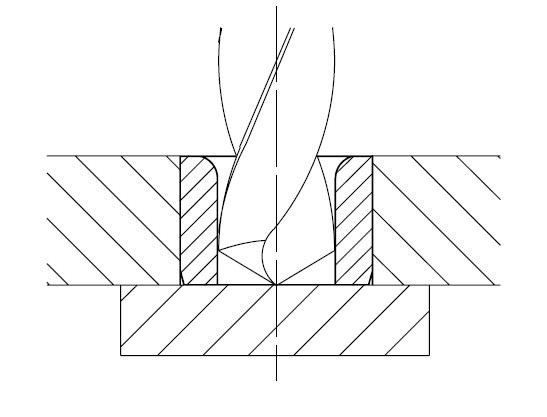

the drill diameter should correspond to the bushing diameter,
press in the bushing angular with a flat mandrel or drive in with Soft-face mallet SM 3366A.
the drill diameter should correspond to the bushing diameter,
press in the bushing angular with a flat mandrel or drive in with Soft-face mallet SM 3366A.
on request
Form CA: with one radius, additionally with grooves for gluing
Form CB: with two radiuses, additionally with grooves for gluing
Form CVA: with one radius, additionally with grooves fand locking device
Form CVB: with two radiuses, additionally with grooves fand locking device
Form CA: with one radius, additionally with grooves for gluing
Form CB: with two radiuses, additionally with grooves for gluing
Form CVA: with one radius, additionally with grooves fand locking device
Form CVB: with two radiuses, additionally with grooves fand locking device
