Drill bushing F7, stainless steel - sim. to DIN 179 | SM 1000N

from €4.81*

Quantity Unit price
To 249
€37.70*
To 9
€18.85*
To 49
€13.58*
To 99
€6.41*
From 100
€5.27*

Prices incl. VAT plus shipping costs

Available in 70 days

Delivery time: See variant in the table
This product is available in 1719 versions.
Show all variants
Form
Inside Diameter
Length
Outside Diameter
Product number: 73266

Description Datasheet CAD data
Filter
Product information "Drill bushing F7, stainless steel - sim. to DIN 179 | SM 1000N "

Positioning bushing
sim. to DIN 179 / ISO 4247
cylindrical, made of stainless steel

Material: Stainless steel 1.4112
hardened and ground
Hardness: HRc 56±1

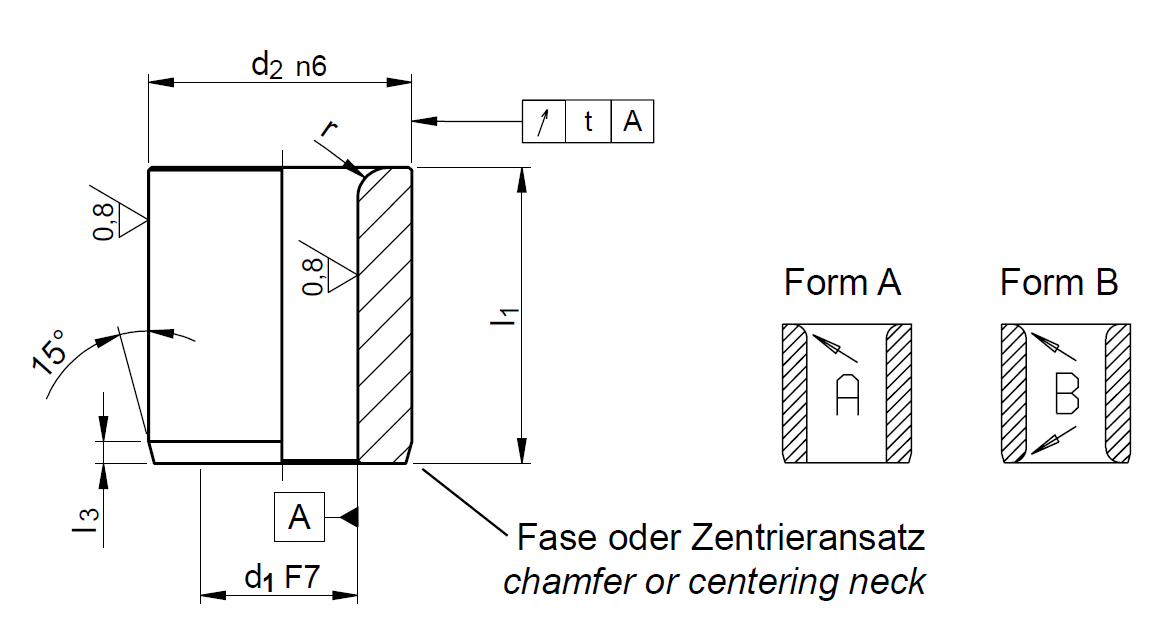

Form A: with one radius
Form B: with two radiuses

RoHS-compliant: yes

Locating hole in the workpiece to ISO tolerance H6 or H7.
Drill bushes from SCHOLZ MECHANIK are used in all manufacturing companies as a cost-effective and wear-resistant component. No longer just for precise drill guidance, but also in combination with new production processes - e.g. 3D printing - the drill bush can be used to quickly produce clamping fixtures, measuring gauges, clamping supports, etc.
Drill positioning bushes are important and useful elements for placement and grid plates for turning and milling centres. Their high hardness and tight tolerances ensure very high repeat accuracy and a long service life.

Assembly:
the drill diameter should correspond to the bushing diameter,
press in the bushing angular with a flat mandrel or drive in with Soft-face mallet SM 3366A.

DIN / ISO: DIN 179 and similar, ISO 4247
Material: Stainless steel, Stainless steel - hardened
Surface: grinded
Type: Drill bushings, cylindrical, Locating bushing / Positioning bush
CAD data

Accessory Items

SUPERCRAFT Soft-face hammer | SM 3366A
SUPERCRAFT Soft-face hammer | SM 3366A
SUPERCRAFT Soft-face hammer with vibration-reducing Tubular head: filled with steel shotHandle: HickoryImpact inserts: Nylon, white Note:Non-rebound, for extra powerful strikes | Noise-dampening and gentle on the joints | Completely robot-welded | Very safe handle-head-connection due to aluminium wedge and safety pin | Robust powder coating | Inserts made of special nylon with maximum strength | Vibration-dampening, ergonomically shaped, very stable and varnished hickory handle | Handle protection sleeve acts as an overstrike protector | Handle and inserts are replaceableThe tubular head of the SUPERCRAFT mallets is fi lled with steel shot. The resulting effect is that the energy of the steel shot is transferred with a slight delay when the mallet's contact surface hits the workpiece. The reduced rebound allows the impact energy to be absorbed with perfect effi ciency. The result is impact of exceptional magnitude. Working with SUPERCRAFT sledge hammers is much safer, easier on the joints and quieter than with ordinary steel hammers. Application Areas:Hall construction, steel construction, exhibition Positioning and joining of workpieces in the vice, sheet-metal working, assembly f sharp-edged workpieces, assembly and repair work in the automotive and truck sector, Scaffold and tent construction, Hall, steel and exhibition stand construction, Concrete formwork, straightening work, housing assembly, plant construction, Driving steel wedges, Maintenance / Repair / Overhaul

From €34.36* incl. VAT
Details
SUPERCRAFT Soft-face hammer | SM 3377A
SUPERCRAFT Soft-face hammer | SM 3377A
SUPERCRAFT Soft-face hammer with vibration-reducing Tubular head: fi lled with steel shotHandle: steel tube and ergonomic rubber gripImpact inserts: Nylon, white Note:Non-rebound, for extra powerful strikes | Noise-dampening and gentle on the joints | Completely robot-welded | Very safe handle-head-connection due to aluminium wedge and safety pin | Wear-resistant powder coating prevents corrosion | Inserts made of special nylon with maximum strength | No chipping (even at tempeatures below zero) | Break-proof steel tube handle with ergonomic non-slip rubber grip | Handle protection sleeve acts as an overstrike protector | Handle and inserts are replaceable The tubular head of the SUPERCRAFT mallets is fi lled with steel shot. The resulting effect is that the energy of the steel shot is transferred with a slight delay when the mallet's contact surface hits the workpiece. The reduced rebound allows the impact energy to be absorbed with perfect effi ciency. The result is impact of exceptional magnitude. Working with SUPERCRAFT sledge hammers is much safer, easier on the joints and quieter than with ordinary steel hammers. Application Areas:Positioning and joining of workpieces, assembly of sharp-edged workpieces, straightening work, housing assembly, plant construction, maintenance, repair and overhaul work, assembly and repair work in the automotive and truck sector, sheet-metal working

From €38.23* incl. VAT
Details

Similar Items

CAD Data
Drill bushing - DIN 179 A | SM 1000 A
Drill bushing - DIN 179 A | SM 1000 A
Form: A | Inside Diameter: 12,50 | Length: 28,00 | Outside Diameter: 22,00
Positioning bushDIN 179 / ISO 4247 Form Acylindrical, hardened Material: Special steelhardened and groundHardness: HRc 63±1 Form A: with one radius without grooves Form B: with two radiuses without grooves you will find as an extra article Drill bushing DIN 179 B | SM 1000 B RoHS-compliant: yesLocating hole in the workpiece to ISO tolerance H6 or H7. For other dimension combinations, see SM 1005. Drill bushes from SCHOLZ MECHANIK are used in all manufacturing companies as a cost-effective and wear-resistant component. No longer just for precise drill guidance, but also in combination with new production processes - e.g. 3D printing - the drill bush can be used to quickly produce clamping fixtures, measuring gauges, clamping supports, etc.Drill positioning bushes are important and useful elements for placement and grid plates for turning and milling centres. Their high hardness and tight tolerances ensure very high repeat accuracy and a long service life. Assembly:the drill diameter should correspond to the bushing diameter,press in the bushing angular with a flat mandrel or drive in with Soft-face mallet SM 3366A. on request Form CA: with one radius, additionally with grooves for gluingForm CB: with two radiuses, additionally with grooves for gluingForm CVA: with one radius, additionally with grooves fand locking device Form CVB: with two radiuses, additionally with grooves fand locking device

Variants from €1.42* incl. VAT
€5.18* incl. VAT
Details
CAD Data
Drill bushing - DIN 179 B | SM 1000 B
Drill bushing - DIN 179 B | SM 1000 B
Form: B | Inside Diameter: 04,20 | Length: 16,00 | Outside Diameter: 08,00
Positioning bushDIN 179 / ISO 4247 Form Bcylindrical, hardened Material: Special steel hardened and ground Hardness: HRc 63±1 Form B: with two radiuses without grooves Form A: with one radius without grooves   you will find as an extra article Drill bushing DIN 179 A | SM 1000 ARoHS-compliant: yesLocating hole in the workpiece to ISO tolerance H6 or H7. For other dimension combinations, see SM 1005. Drill bushes from SCHOLZ MECHANIK are used in all manufacturing companies as a cost-effective and wear-resistant component. No longer just for precise drill guidance, but also in combination with new production processes - e.g. 3D printing - the drill bush can be used to quickly produce clamping fixtures, measuring gauges, clamping supports, etc. Drill positioning bushes are important and useful elements for placement and grid plates for turning and milling centres. Their high hardness and tight tolerances ensure very high repeat accuracy and a long service life.Assembly: the drill diameter should correspond to the bushing diameter, press in the bushing angular with a flat mandrel. on request Form CA: with one radius, additionally with grooves for gluing Form CB: with two radiuses, additionally with grooves for gluing Form CVA: with one radius, additionally with grooves and locking device Form CVB: with two radiuses, additionally with grooves and locking device

Variants from €1.57* incl. VAT
From €2.96* incl. VAT
Details
CAD Data
Drill bushing F7, through hardened - sim. to DIN 179 | SM 1000D
Drill bushing F7, through hardened - sim. to DIN 179 | SM 1000D
Positioning bushingsim. to DIN 179 / ISO 4247 cylindrical, through hardened Material: Tool steelhardened and groundHardness:  through hardened to HRc 63±1Form A: with one radius Form B: with two radiusesRoHS-compliant: yesLocating hole in the workpiece to ISO tolerance H6 or H7.For other dimension combinations, see SM 1005. Drill bushes from SCHOLZ MECHANIK are used in all manufacturing companies as a cost-effective and wear-resistant component. No longer just for precise drill guidance, but also in combination with new production processes - e.g. 3D printing - the drill bush can be used to quickly produce clamping fixtures, measuring gauges, clamping supports, etc.Drill positioning bushes are important and useful elements for placement and grid plates for turning and milling centres. Their high hardness and tight tolerances ensure very high repeat accuracy and a long service life.Assembly:the drill diameter should correspond to the bushing diameter,press in the bushing angular with a flat mandrel or drive in with Soft-face mallet SM 3366A.

Variants from €5.68* incl. VAT
€37.91* incl. VAT
Details
CAD Data
Drill bushing F7, carbide - sim. to DIN 179 | SM 1000-02
Drill bushing F7, carbide - sim. to DIN 179 | SM 1000-02
Positioning bushingsim. to DIN 179 / ISO 4247cylindrical, CarbideMaterial: CarbideHardness: about 90 HRASurface: groundForm A: with one radius Form B: with two radiuses RoHS-compliant: yesDrill bushes from SCHOLZ MECHANIK are used in all manufacturing companies as a cost-effective and wear-resistant component. No longer just for precise drill guidance, but also in combination with new production processes - e.g. 3D printing - drill bushes can be used to quickly produce clamping fixtures, measuring gauges, clamping supports, etc. Drill positioning bushes are important and useful elements for placement and grid plates for turning and milling centres. Due to their high hardness and tight tolerances, a very high repeat accuracy and long service life can be guaranteed.Assembly:the drill diameter should correspond to the bushing diameter,press in the bushing angular with a flat mandrel or drive in with Soft-face mallet SM 3366A.

Price on request
Details
CAD Data
Knurled drill bushing - sim. to DIN 179 | SM 1000-1
Knurled drill bushing - sim. to DIN 179 | SM 1000-1
similar to SM 1000 - DIN 179 Material: Special steelhardened and groundHardness: HRc 63±1Form A: with one radiusForm B: with two radiuses RoHS-compliant: yesWith cording and adhesive grooves for a secure hold in the bonding point.

Variants from €2.63* incl. VAT
€3.76* incl. VAT
Details
CAD Data
Knurled bushing F7 | SM 1000-3
Knurled bushing F7 | SM 1000-3
Material: Special steelhardened and groundHardness: HRc 63±1Form A: with one radius without adhesive grooves Form B: with two radii without adhesive grooves RoHS-compliant: yes Particularly suitable for mounting in aluminium, plastic or wood materials by pressing in or gluing.On request: Form CA: with adhesive grooves and one radius Form CB: with adhesive grooves and two radii Suitable for 3D-printed components to achieve functional surfaces.

Variants from €2.80* incl. VAT
€4.01* incl. VAT
Details
Guide bushing, conical | SM 1273-54
Guide bushing, conical | SM 1273-54
without collarwith conical borefor indexing plungers SM 1273-51 Material:ST: special steelhardened  (HRC 62 ±2) and groundNI: stainless steelhardened and ground These guide bushings with conical bore will be used for the latch bore of indexing plungers SM 1273-51. RoHS-compliant: yes

From €7.02* incl. VAT
Details
