Hand lever, adjustable | SM 1186
from €5.50*
€5.69*
Available in 5 days
Delivery time: See variant in the table
This product is available in 40 versions.
Product information "Hand lever, adjustable | SM 1186"
with bushing
Material:
thread insert and retaining screw:
ST: steel blackened
NI: stainless steel 1.4305
handle: zinc die casting
thread insert and retaining screw:
ST: steel blackened
NI: stainless steel 1.4305
handle: zinc die casting
Colors / surfaces:
plastic coated
SW = black, textured finish RAL 9005
OR = orange, textured finish RAL 2004
plastic coated
SW = black, textured finish RAL 9005
OR = orange, textured finish RAL 2004

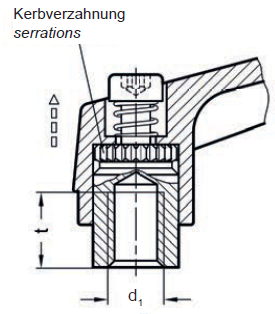

By lifting the lever, the serrations are disengaged.
The handle can be positioned by the serrations, and the threaded insert can be exchanged.
Upon releasing the handle, the serrations are automatically reengaged.
These adjustable hand levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position.
The handle can be positioned by the serrations, and the threaded insert can be exchanged.
Upon releasing the handle, the serrations are automatically reengaged.
These adjustable hand levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position.
RoHS-compliant: yes
| Colour: | black gray, orange |
|---|---|
| Compliance: | RoHS compliant |
| Material: | Bushing/Screw: Stainless Steel, Bushing/Screw: Steel, Lever: Zinc die casting |
| Speciality: | Locking by self-locking, With internal thread, with internal hexagon |
| Surface: | Stainless steel - bright, Steel - burnished, plastic coated |
| Type of use: | Clamping lever, Lever |
