Hexagon collar nut with conical seat, with small surface

Similar Items

Thrust pad - DIN 6311 | SM 1270

with snap ring Material: ST: steel case hardened, blackenedNI: stainless steelSpring retainer inlayed.Use with tommy screws DIN 6304 / SM 1235 and DIN 6306 / SM 1236, with screws with pressure pins DIN 6332 / SM 1240 also as feet.The swivelling connection of the thrust pin and thrust piece enables adaptation to uneven clamping surfaces or clamping surfaces that are not perpendicular to the screw axis and prevents the rotary movement of the screw from being transferred to the clamping surface during clamping. Mountage: The thrust piece is to be held in such a way that the snap ring lies in the recess and points with the open side downwards. The bolt is tilted towards the open side of the snap ring as far as possible and pressed in. RoHS-compliant: yes

From €1.81* incl. VAT

Details

Thrust pad, flat - DIN 6311 | SM 1270-1

with snap ringMaterial: ST: steel case hardened, blackened NI: stainless steelSpring retainer inlayed.Low model with increased thrust area.Use with tommy screws DIN 6304 / SM 1235 and DIN 6306 / SM 1236, with screws with pressure pins DIN 6332 / SM 1240 also as feet. The swivelling connection of the thrust pin and thrust piece enables adaptation to uneven clamping surfaces or clamping surfaces that are not perpendicular to the screw axis and prevents the rotary movement of the screw from being transferred to the clamping surface during clamping.Mountage: The thrust piece is to be held in such a way that the snap ring lies in the recess and points with the open side downwards.The bolt is tilted towards the open side of the snap ring as far as possible and pressed in.RoHS-compliant: yes

From €3.86* incl. VAT

Details

Leveling pad, anti-slip | SM 1270-2 AC

with ball element and rubber capMaterial:Form AC: ball bearing: heat-treated steel, tempered, blackenedpad: heat-treated steel, tempered, blackenedForm CDN:ball bearing: stainless steel 1.4305pad: Thermoplast (POM), white Form CNI: ball bearing: stainless steel 1.4305pad: stainless steel 1.4305Form C: with rubber cap for anti slipRoHS-compliant: yesUse as adjustable foot and thrust piece.Non-parallel bearing surfaces up to max. 15° degrees can be compensated.The plastic cap on the joint plate prevents slipping.The static load capacity is limited by the permissible load capacity of the joint ball.The values in the tables assume are based on a pure compressive load perpendicular to the joint foot.Bending/ buckling loads lead to a reduction in the load capacity and must be taken into account accordingly.

From €11.54* incl. VAT

Details

Leveling pad with bolt, anti-slip | SM 1270-2 BC

with bolt, ball element and rubber capas anti-slip deviceMaterial:Form BC: ball bearing with bolt: heat-treated steel, tempered, blackenedpad: heat-treated steel, tempered, blackenedForm BCDN: ball bearing with bolt: stainless steel 1.4305pad: Thermoplast (POM), whiteForm BCNI: ball bearing with bolt: stainless steel 1.4305pad: stainless steel 1.4305Form C: with rubber cap for anti slipRoHS-compliant: yesUse as adjustable foot and thrust pieceNon-parallel bearing surfaces up to max. 15° degrees can be compensated.The plastic cover on the mounting pad prevents slipping.The static load capacity is limited by the permissible load capacity of the joint ball. The values in the tables assume are based on a pure compressive load perpendicular to the joint foot. Bending/ buckling loads lead to a reduction in the load capacity and must be taken into account accordingly.

From €19.54* incl. VAT

Details

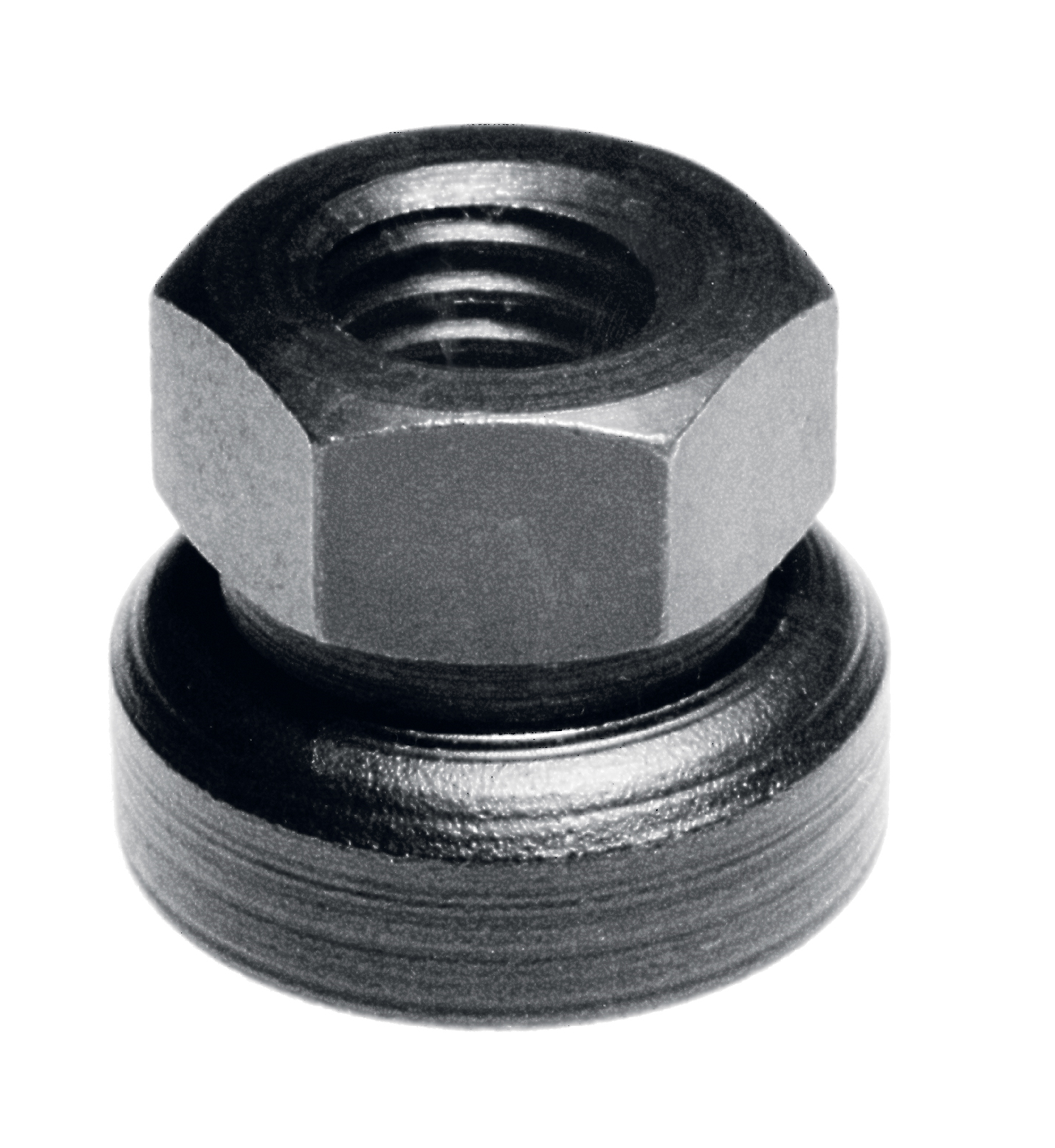

Hexagon collar nut, conical seat | SM 1270-3

with small surfaceMaterial: heat-treated steel, temperedblackenedRoHS-compliant: yes The hexagon nut with conical socket is a firmly connected unit consisting of a hexagon nut and conical socket, which can be used to compensate for non-parallel clamping surfaces with a swivelling range of up to max. 3°. The nut and ball socket are captively connected to each other.

From €9.07* incl. VAT

Details

Diameter 1	Product number	Unit price	Buy

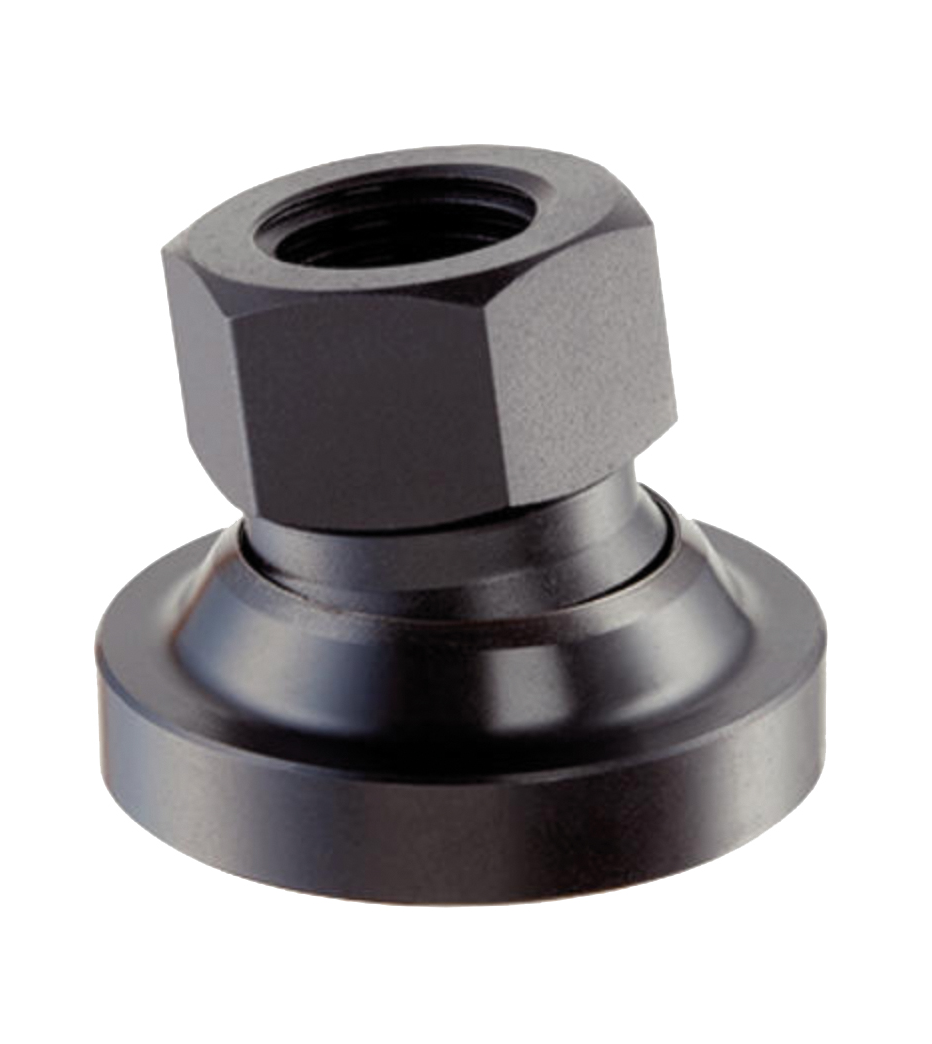

Product information "Hexagon collar nut | SM 1270-31 "

with conical seat
with large surface

Material:
heat-treated steel, tempered
blackened

RoHS-compliant: yes

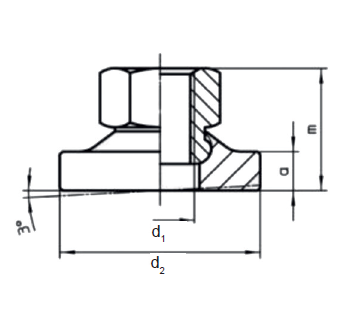

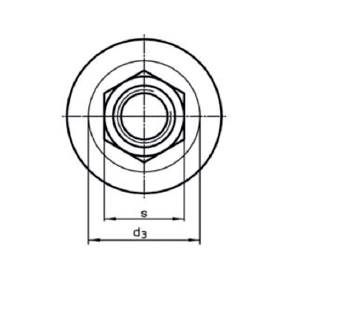

The hexagon nut with conical socket is a firmly connected unit consisting of a hexagon nut and conical socket,
which can be used to compensate for non-parallel clamping surfaces with a swivelling range
of up to max. 3°.
The nut and ball socket are captively connected to each other.

Compliance:	RoHS compliant
Element type:	Feet / Wheels, Joint pieces, Screws / Nuts, Thrust pieces
Material:	Quenched and tempered steel
Surface:	Steel - burnished

Hexagon collar nut | SM 1270-31

with conical seatwith large surface

with conical seat
with large surface
