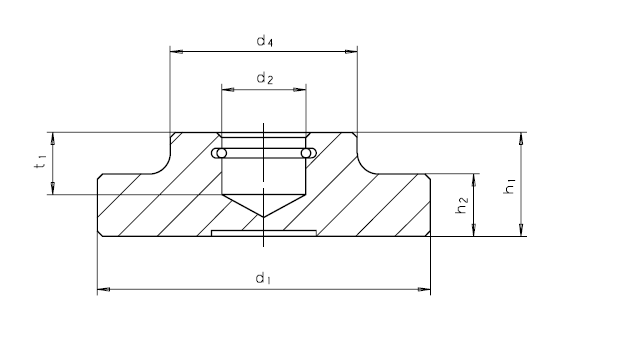

Thrust pad, flat - DIN 6311

Diameter	Material	Product number	Unit price	Buy

Product information "Thrust pad, flat - DIN 6311 | SM 1270-1"

with snap ring

Material:
ST: steel case hardened, blackened
NI: stainless steel

Spring retainer inlayed.
Low model with increased thrust area.

Use with tommy screws DIN 6304 / SM 1235 and DIN 6306 / SM 1236,
with screws with pressure pins DIN 6332 / SM 1240 also as feet.

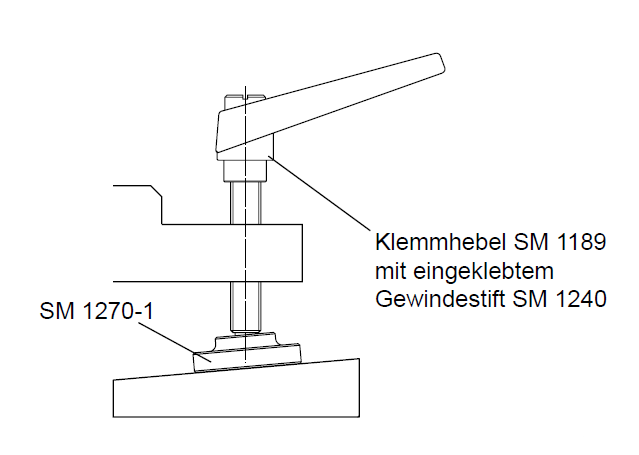

The swivelling connection of the thrust pin and thrust piece enables adaptation
to uneven clamping surfaces or clamping surfaces that are not perpendicular to the screw axis
and prevents the rotary movement of the screw from being transferred to the clamping surface during clamping.

Mountage: The thrust piece is to be held in such a way that the snap ring lies in the recess and points with the open side downwards.
The bolt is tilted towards the open side of the snap ring as far as possible and pressed in.

RoHS-compliant: yes

Compliance:	RoHS compliant
DIN / ISO:	DIN 6311
Element type:	Articulated foot, Feet / Wheels, Joint plate, Thrust pieces
Material:	Stainless steel, Steel
Speciality:	With snap ring
