Thrust pad with snap ring - DIN 6311

Diameter	Material	Product number	Unit price	Buy

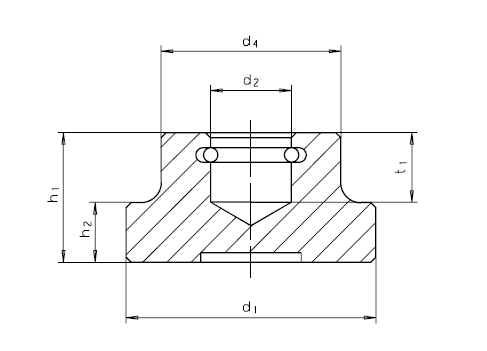

Product information "Thrust pad - DIN 6311 | SM 1270"

with snap ring

Material:
ST: steel case hardened, blackened
NI: stainless steel
Spring retainer inlayed.

Use with tommy screws DIN 6304 / SM 1235 and DIN 6306 / SM 1236,
with screws with pressure pins DIN 6332 / SM 1240 also as feet.

The swivelling connection of the thrust pin and thrust piece enables adaptation to uneven clamping surfaces or clamping surfaces that are not perpendicular to the screw axis and prevents the rotary movement of the screw from being transferred to the clamping surface during clamping.

Mountage:

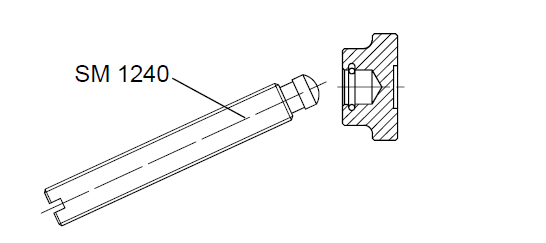

The thrust piece is to be held in such a way that the snap ring lies in the recess and points with the open side downwards. The bolt is tilted towards the open side of the snap ring as far as possible and pressed in.

RoHS-compliant: yes

Compliance:	RoHS compliant
DIN / ISO:	DIN 6311
Element type:	Articulated foot, Feet / Wheels, Joint plate, Thrust pieces
Material:	Stainless steel, Steel
Speciality:	With snap ring

Accessory Items

Grub screw - DIN 6332 | SM1240

with thrust point Material: steel, grade 5.8STH: thrust point hardenedSTU: thrust point unhardenedSTZ: zinc plated, blue passivated, thrust point unhardenedstainless steel 14301NI: thrust point unhardenedwith hexagon socket The thrust point of these screws DIN 6332 SM 1240 is designed to be used with or without the thrust pad SM 1270 or SM 1270-1 for clamping. The snap ring resp. spring is a simple and quick method to connect the thrust pad to the grub screw. Through the combination of grub screws DIN 6332 with various handles or knobs, simple clamping screws can be created. Mountage: You must hold the thrust point that the snap ring is sitting in the groove and the open side is looking downstairs. The bolt is to be pushed in by holding it incline as much as possible to the open side of the snap ring. RoHS-compliant: yes

From €0.80* incl. VAT

Details

Similar Items

Thrust pad, flat - DIN 6311 | SM 1270-1

with snap ringMaterial: ST: steel case hardened, blackened NI: stainless steelSpring retainer inlayed.Low model with increased thrust area.Use with tommy screws DIN 6304 / SM 1235 and DIN 6306 / SM 1236, with screws with pressure pins DIN 6332 / SM 1240 also as feet. The swivelling connection of the thrust pin and thrust piece enables adaptation to uneven clamping surfaces or clamping surfaces that are not perpendicular to the screw axis and prevents the rotary movement of the screw from being transferred to the clamping surface during clamping.Mountage: The thrust piece is to be held in such a way that the snap ring lies in the recess and points with the open side downwards.The bolt is tilted towards the open side of the snap ring as far as possible and pressed in.RoHS-compliant: yes

From €3.86* incl. VAT

Details

Leveling pad | SM 1270-2 A

Jointed plate Material:Form A: ball bearing: heat-treated blackened pad: steelForm DN: ball bearing: stainless steel pad: Thermoplast (POM)Form NI: ball bearing: stainless steel pad: stainless steel Use as feet and pressure pieces.They can be connected with most types of screws.Non-parallel contact surfaces up to max. 15° degrees can be levelled out.Temperature application range thermoplastic version from - 30 °C to + 80 °C. RoHS-compliant: yes

From €10.07* incl. VAT

Details

Hexagon collar nut, conical seat | SM 1270-3

with small surfaceMaterial: heat-treated steel, temperedblackenedRoHS-compliant: yes The hexagon nut with conical socket is a firmly connected unit consisting of a hexagon nut and conical socket, which can be used to compensate for non-parallel clamping surfaces with a swivelling range of up to max. 3°. The nut and ball socket are captively connected to each other.

From €9.07* incl. VAT

Details

Machine foot | SM 1270-5

Material:NI: stainless steel 1.4305KU: plasticST: steel, zinc plated - Remaining stockson request: STB: Steel, hardened and burnished dimensions d / d2 / h1 slightly different RoHS-compliant: yesMachine feet are used for load transfer and the elastic mounting of all types of machines.

From €6.75* incl. VAT

Details

Thrust pad | SM 1270-11

with or without plastic capMaterial:ST: steel case hardened, blackenedNI: stainless steelRetaining spring: Stainless steel 1.4310Plastic cap:natural color, (Polyacetal POM),temperature resistant up to100 °CForm A: without plastic capForm K: with plastic capThe thrust pieces adapt to uneven or cylindrical surfaces and prevent transmission of the rotary movement of the screw to the workpiece. The plastic caps prevent damage to delicate workpieces.Due to the special shape of the retaining spring, the thrust piece can be easily attached to the thrust pin and removed again without any problems.Use with tommy screws DIN 6304 / SM 1235 and DIN 6306 / SM 1236,with screws with pressure pins DIN 6332 / SM 1240 also as feet.RoHS-compliant: yes

From €2.64* incl. VAT

Details

Hexagon collar nut | SM 1270-31

with conical seatwith large surfaceMaterial: heat-treated steel, temperedblackenedRoHS-compliant: yesThe hexagon nut with conical socket is a firmly connected unit consisting of a hexagon nut and conical socket,which can be used to compensate for non-parallel clamping surfaces with a swivelling range of up to max. 3°. The nut and ball socket are captively connected to each other.

From €17.59* incl. VAT

Details
