Knurled screw | SM 1252-1

SCHOLZ MECHANIK GmbH

Diameter 1	Length	Material	Product number	Unit price	Buy

Product information "Knurled screw | SM 1252-1 "

flat type
with a thin shank for loss prevention

Material:
STB: steel, property class 5
NI: stainless steel 1.4305 / AISI 303, matte shot-blasted

All flat knurled screws SM 1252-1 are produced from one piece and threaded over its full length.
Visible face finde turned.
The nuts are knurled to ensure a good grip.

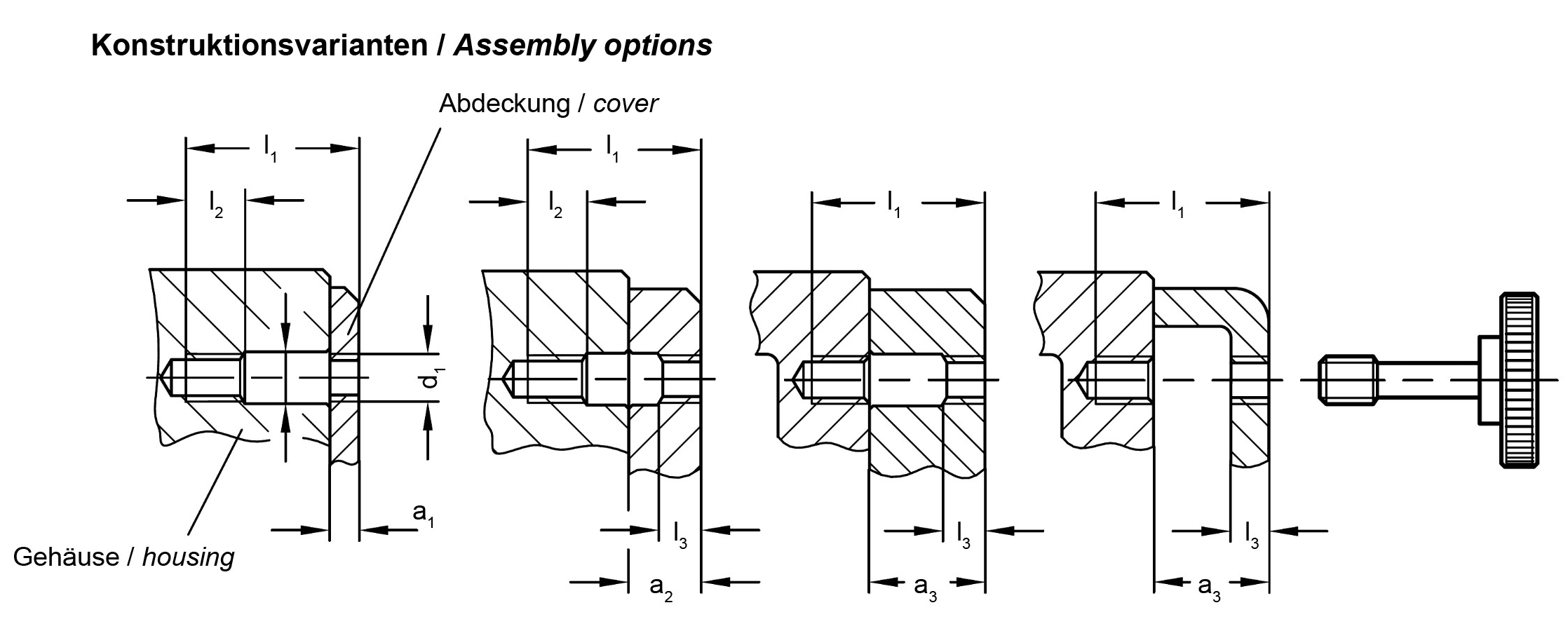

These knurled screws can be secured against "loss" by the thin shaft.
For this purpose, instead of a normal through/threaded hole, a thread d1
must be provided on both sides, possibly with a corresponding hole d5
must be provided on both sides.

RoHS-compliant: yes

Compliance:	RoHS compliant
Material:	Stainless steel, Steel
Speciality:	With knurling, With threaded stud
Surface:	Stainless steel - matt blasted, Steel - burnished, Steel - zinc plated
Type of use:	Knurled screws / knobs, Screws
