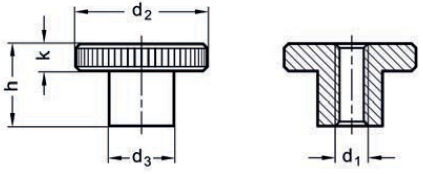

Knurled nut - DIN 466 | SM 1251

SCHOLZ MECHANIK GmbH

Diameter 1	Material	Product number	Unit price	Buy

Product information "Knurled nut - DIN 466 | SM 1251"

high type

Material:
STV: steel, property class 5, zinc plated, visible face fine turned
STB: steel, property class 5, blackened, visible face fine turned
NI: stainless steel 1.4305 / AISI 303, matte shot-blasted

The nuts are knurled to ensure a good grip.
Knurled nuts to DIN 466 therefore enable quick and easy manual fastening or removal of components
and are primarily used where repeated handling and quick loosening or tightening is required without the need for tools.
Typical areas of application are mechanical engineering, electrical engineering and precision mechanics,
but also in medical technology and measuring instruments.

RoHS-compliant: yes

on request:
A4: stainless steel 1.4404 / AISI 316L
matt blasted

Compliance:	RoHS compliant
DIN / ISO:	DIN 466
Material:	Brass, Stainless steel, Steel
Speciality:	With internal thread, With knurling, With through hole thread
Surface:	Stainless steel - matt blasted, Steel - burnished, Steel - zinc plated
Type of use:	Knobs, Knurled screws / knobs, Nuts
