Quick acting knurled nut | SM 1259

SCHOLZ MECHANIK GmbH

105822_1KfqSEfIDg4UYx

105822_1KfqSEfIDg4UYx

from €4.99*

€5.28*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

Delivery time: See variant in the table

This product is available in 10 versions.

Show all variants

Diameter 1

M05

M06

M08

M10

M12

Material

Edelstahl/stainless_steel

Stahl/steel

Product number: 7557

Description Datasheet

Diameter 1	Material	Product number	Unit price	Buy

Product information "Quick acting knurled nut | SM 1259 "

Quick release nut

Material:
ST: steel, property class 5, blackened
NI: stainless steel 1.4305 / AISI 303, matte shot-blasted

Quick-release knurled nuts are used when the nut needs to be completely removed after loosening and quickly returned to the clamping position.

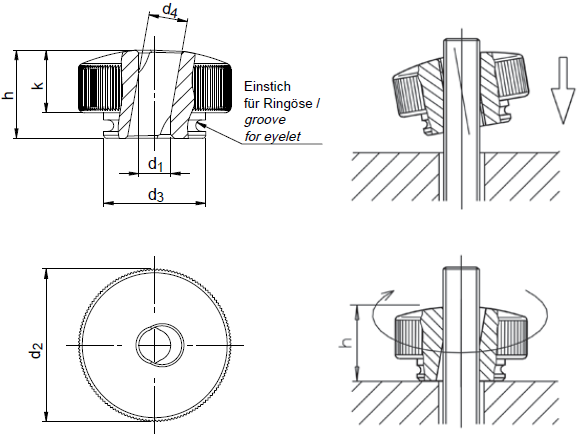

The knurled nut is pushed onto the threaded bolt at oblique.
When tightening, the nut engages in the threads of the bolt.
The connection is only reliable if the clamping surface is at right angles to the threaded bolt.
The knurling of the knobs ensures a good grip and ease of handling.

RoHS-compliant: yes

Compliance:	RoHS compliant
Material:	Stainless steel, Steel
Speciality:	Quick release nut / bushing, With internal thread, With knurling
Surface:	Stainless steel - matt blasted, Steel - burnished
Type of use:	Knurled screws / knobs, Nuts, Quick-release handles
