Locating bolt, plastic contact surface | SM 1147-01

SCHOLZ MECHANIK GmbH

Variants table
Diameter 1	Form	Length 1	Material	Product number	Unit price	Buy

Product information "Locating bolt, plastic contact surface | SM 1147-01 "

Positioning foot
with plastic contact surface

Material:
Insert: plastic (PEEK), blue
threaded bushing: stainless steel
threaded pin: stainless steel
body:
KU: plastic (PEEK), blue
NI: stainless steel 1.4305

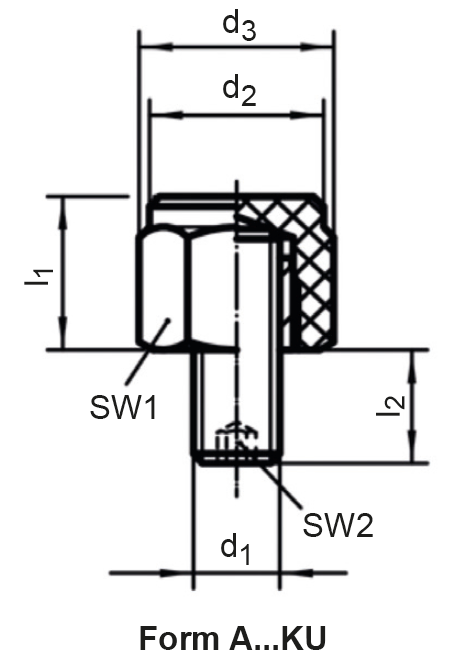

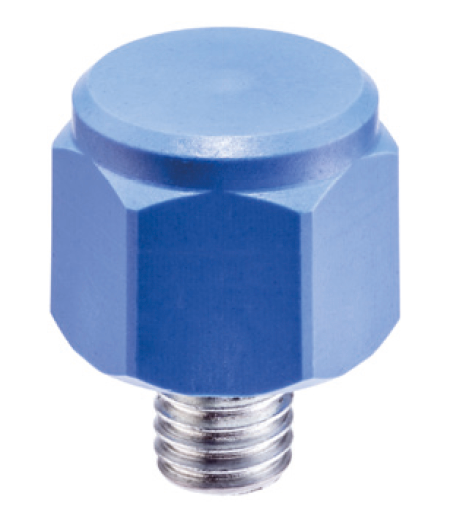

Form A...KU: with male thread, body made of plastic (PEEK), plain surface

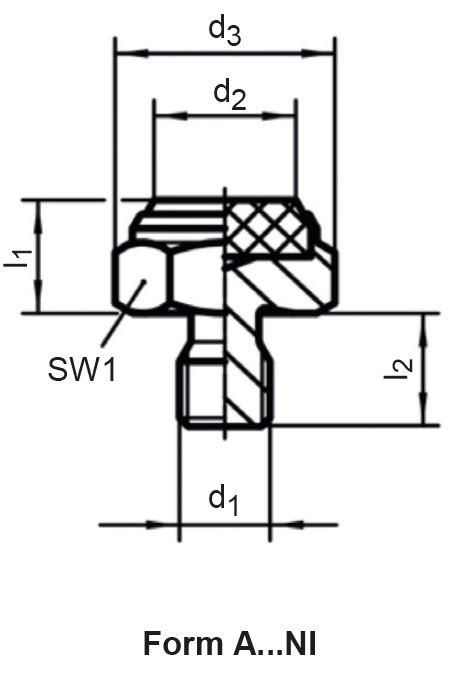

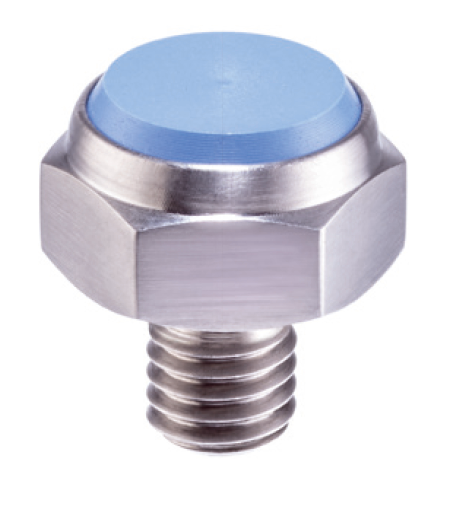

Form A...NI: with male thread, stainless steel body, plastic insert, plain surface

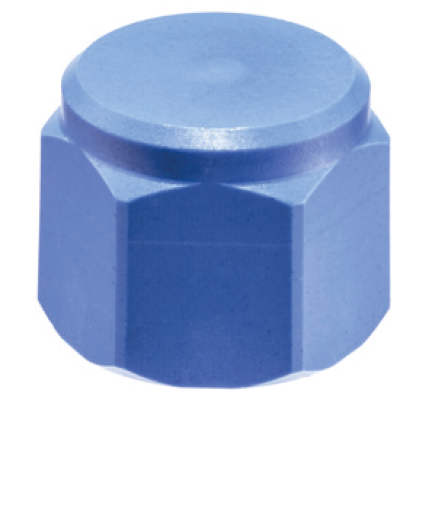

Form D...KU: with female thread, body made of plastic (PEEK), plain surface

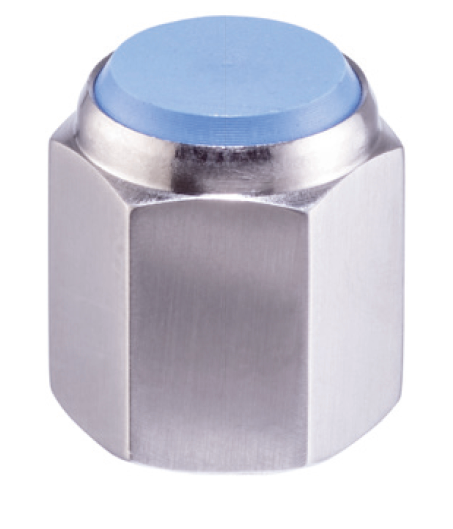

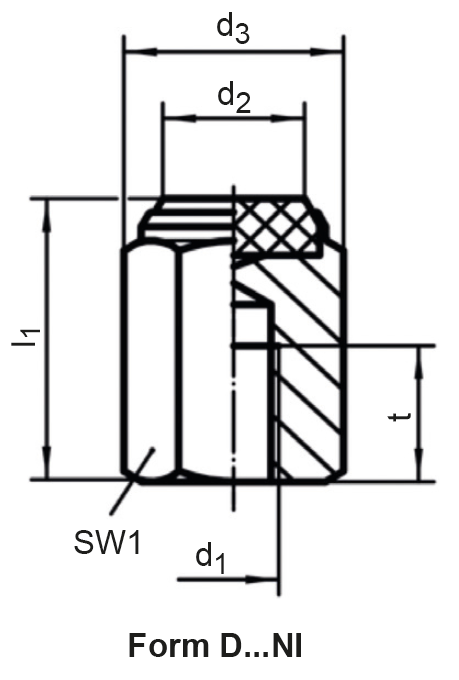

Form D...NI: with female thread, stainless steel body, plastic insert (PEEK), plain surface

RoHS-compliant: yes

Pins with plastic contact surface can be used as protective supports,
stops, and thrust pads. This protects high-quality surfaces from damage.
Temperature resistant -60° to 250°C.

Compliance:	RoHS compliant
Element type:	Feet / Wheels, Locating bolt, Support bolt, bolts
Material:	Plastic, Plastic insert, Stainless steel
Speciality:	Support surface flat, With threaded stud
