Locating bolt | SM 1147-02

Similar Items

Locating bolt SM | 1147

Positioning foot / Support bolt Material: steel, case-hardened, blackened. Thread not hardened. Form A: with thread and plain surfaceForm B: with thread and spherical surfaceForm C: with thread and ribbed surfaceForm D: with female thread and plain surfaceForm E: with female thread and spherical surfaceForm F: with female thread and ribbed surface To be used as seats, stops and thrust padsin fixture construction and general machine and device construction. RoHS-compliant: yes

From €11.83* incl. VAT

Details

Locating bolt, plastic contact surface | SM 1147-01

Positioning foot with plastic contact surface Material:Insert: plastic (PEEK), bluethreaded bushing: stainless steelthreaded pin: stainless steelbody:KU: plastic (PEEK), blueNI: stainless steel 1.4305 Form A...KU: with male thread, body made of plastic (PEEK), plain surfaceForm A...NI: with male thread, stainless steel body, plastic insert, plain surfaceForm D...KU: with female thread, body made of plastic (PEEK), plain surfaceForm D...NI: with female thread, stainless steel body, plastic insert (PEEK), plain surface RoHS-compliant: yes Pins with plastic contact surface can be used as protective supports,stops, and thrust pads. This protects high-quality surfaces from damage.Temperature resistant -60° to 250°C.

From €26.19* incl. VAT

Details

Locating bolt | SM 1147-1

Positioning foot with threadet bolt Material: Steel, case-hardened, blackened. Thread not hardened. Form A: surface hardenedForm B: surface hardened and groundForm C: spherical surface hardenedForm D: ribbed surface heat-treated RoHS-compliant: yes

From €5.36* incl. VAT

Details

Locating bolt with carbide insert | SM 1148

with ribbed carbide insertwith threaded bolt body: heat-treated steel, blackenedinsert: carbide waffled, brazed-in For work pieces showing a rough surface. RoHS-compliant: yesSupport pins / positioning feet with carbide insert with serrated contact surface are used as supports, stops and thrust pieces in fixture construction and general machine and equipment construction, especially for workpieces with a rough surface.

From €19.23* incl. VAT

Details

Locating bolt, carbide insert | SM 1148-1

with carbide insert with pointwith threaded bolt body: heat-treated steel, blackenedinsert: carbide plate with point, brazed-in For work pieces showing a rough surface. RoHS-compliant: yesSupport pins / positioning feet with carbide insert with point are used as supports, stops and thrust pieces in fixture construction and general machine and equipment construction, especially for workpieces with a rough surface.

From €19.23* incl. VAT

Details

Locating bolt, ribbed | SM 1149

with ribbed contact surfacewith internal thread Material: free cutting steel, case-hardened, blackened RoHS-compliant: yesSupport pins with a ribbed support surface are used as supports, stops and pressure pieces in general machine and equipment construction, especially for workpieces with rough surfaces.

From €9.87* incl. VAT

Details

Variants table
Diameter	Form	Length	Product number	Unit price	Buy

Product information "Locating bolt | SM 1147-02"

Positioning foot
adjustable, with threaded pin

Bolt: Steel
Support surface: Induction hardened
Nut: Steel
thread not hardened

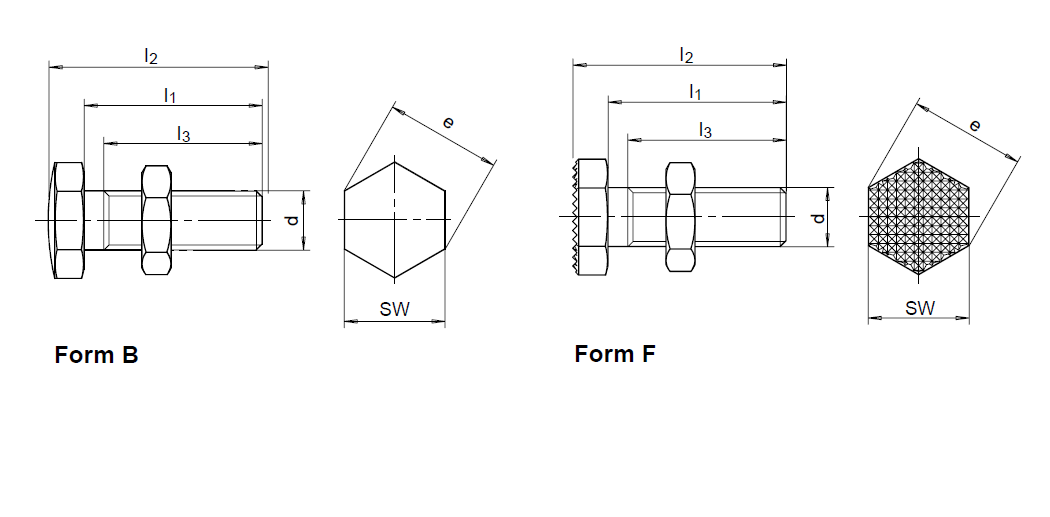

Form B: spherical support surface
Form F: ribbed support surface

To be used as seats, stops and thrust pads.

RoHS-compliant: yes

Compliance:	RoHS compliant
Element type:	Feet / Wheels, Locating bolt, Support bolt, bolts
Material:	Steel
Speciality:	Support surface crowned / curved, Support surface hardened, Support surface ribbed
Surface:	Steel - burnished

Locating bolt | SM 1147-02

Positioning footadjustable, with threaded pin

Positioning foot
adjustable, with threaded pin
