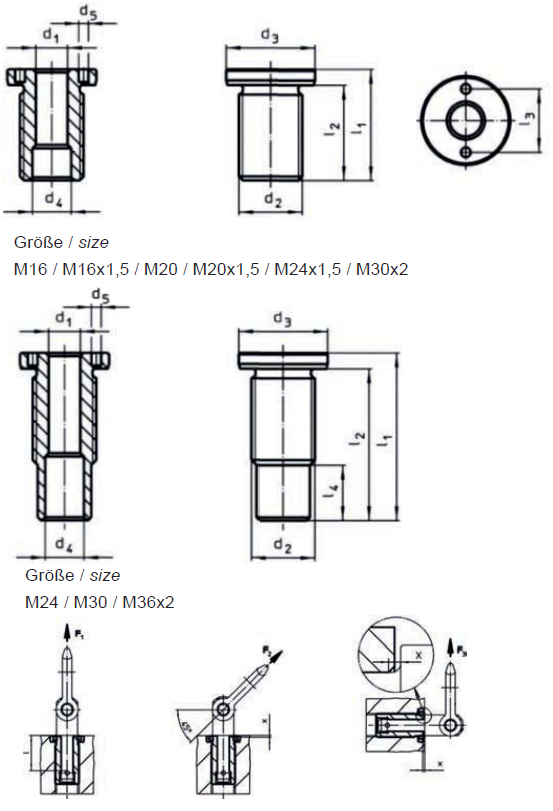

Product information "Locating bushing | SM 1273-67 "

plain
for lifting pins

Material:
stainless steel 1.4542 precipitation-hardened

RoHS-compliant: yes

Fast and secure mounting for the SM 1273-83 lifting pin.
Used when a flat surface is required when screwed in, or for thin-walled parts and blind holes.

A face spanner (SM 1273-67 ST) is required for installation.

Compliance:	RoHS compliant
Material:	Stainless steel
Speciality:	Fine thread, Standard thread
Surface:	Stainless steel - bright
Type of use:	Ball support bolt / ball clamping bolt, Bushings
