Locating pin, conical | SM 1020-3

SCHOLZ MECHANIK GmbH

from €11.09*

€16.64*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

Delivery time: See variant in the table

This product is available in 6 versions.

Show all variants

Diameter

06,00

08,00

10,00

Length

19,5

23,5

27,5

Material

Edelstahl/stainless_steel

Stahl/steel

Product number: 241108

Description Datasheet

Diameter	Length	Material	Product number	Unit price	Buy

Product information "Locating pin, conical | SM 1020-3 "

for guide bushings with conical bore

Material:
ST: steel
gehärtet ≈ HRC 62 +4
NI: stainless steel

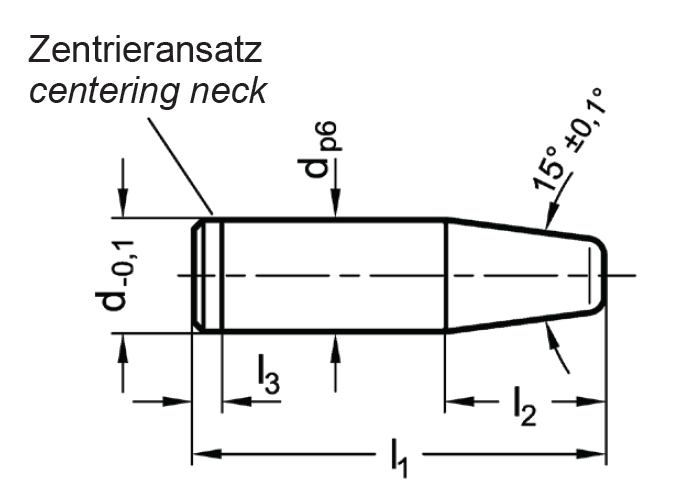

Fitting dimensions d p6 ground.

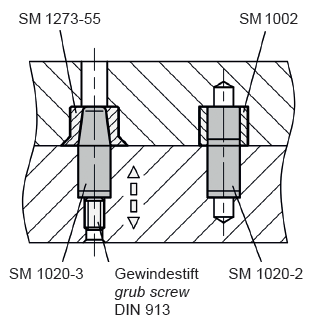

Use for Guide bushes with conical bore SM 1273-54 und SM 1273-55 sim. to DIN 179 / DIN 172.
The shaft tolerance to p6 ensures a perfect fit in a bore to H7.
The chamfer l3 facilitates the fitting.

RoHS-compliant: yes

Element type:	Round bars / dowel pins
Material:	Steel - hardened
Surface:	grinded

Similar Items

Locating pin | SM 1020-2

Diameter: 08,00 | Length: 24,00

cylindricalfor positioning bushings DIN 172 / DIN 179 Material: steelhardened, groundHardness: ≈ HRC 62+4 Fit dimensions d p6 / d h6 groundLocating pins SM 1020-2 are normally used in conjunction with locating bushes SM 1000 and SM 1002.The shaft tolerance to p6 ensures a perfect fit in a bore to H7. The chamfer l3 facilitates the fitting. RoHS-compliant: yes

Variants from €4.59* incl. VAT

€5.22* incl. VAT

Details

Accessory Items

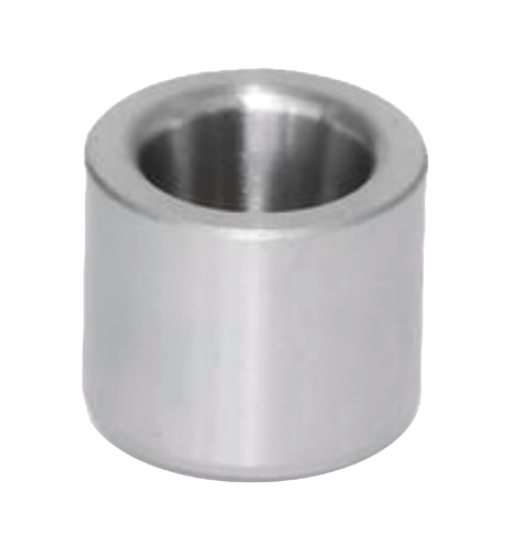

Guide bushing, conical | SM 1273-54

Diameter 1: 08,00 | Length 1: 10,00 | Material: Stahl/steel

without collarwith conical borefor indexing plungers SM 1273-51 Material:ST: special steelhardened (HRC 62 ±2) and groundNI: stainless steelhardened and ground These guide bushings with conical bore will be used for the latch bore of indexing plungers SM 1273-51. RoHS-compliant: yes

Variants from €7.02* incl. VAT

€7.77* incl. VAT

Details

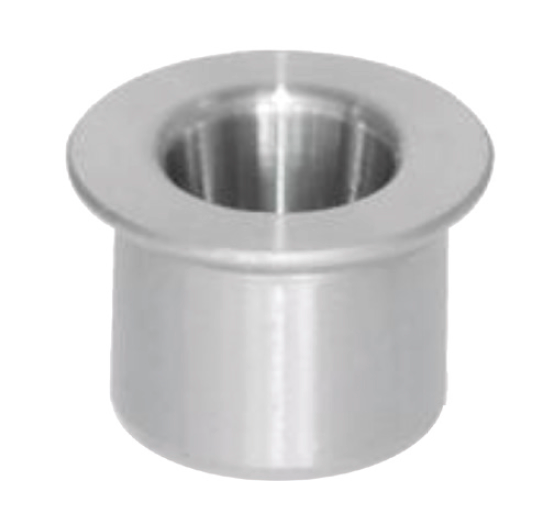

Guide bushing, conical | SM 1273-55
