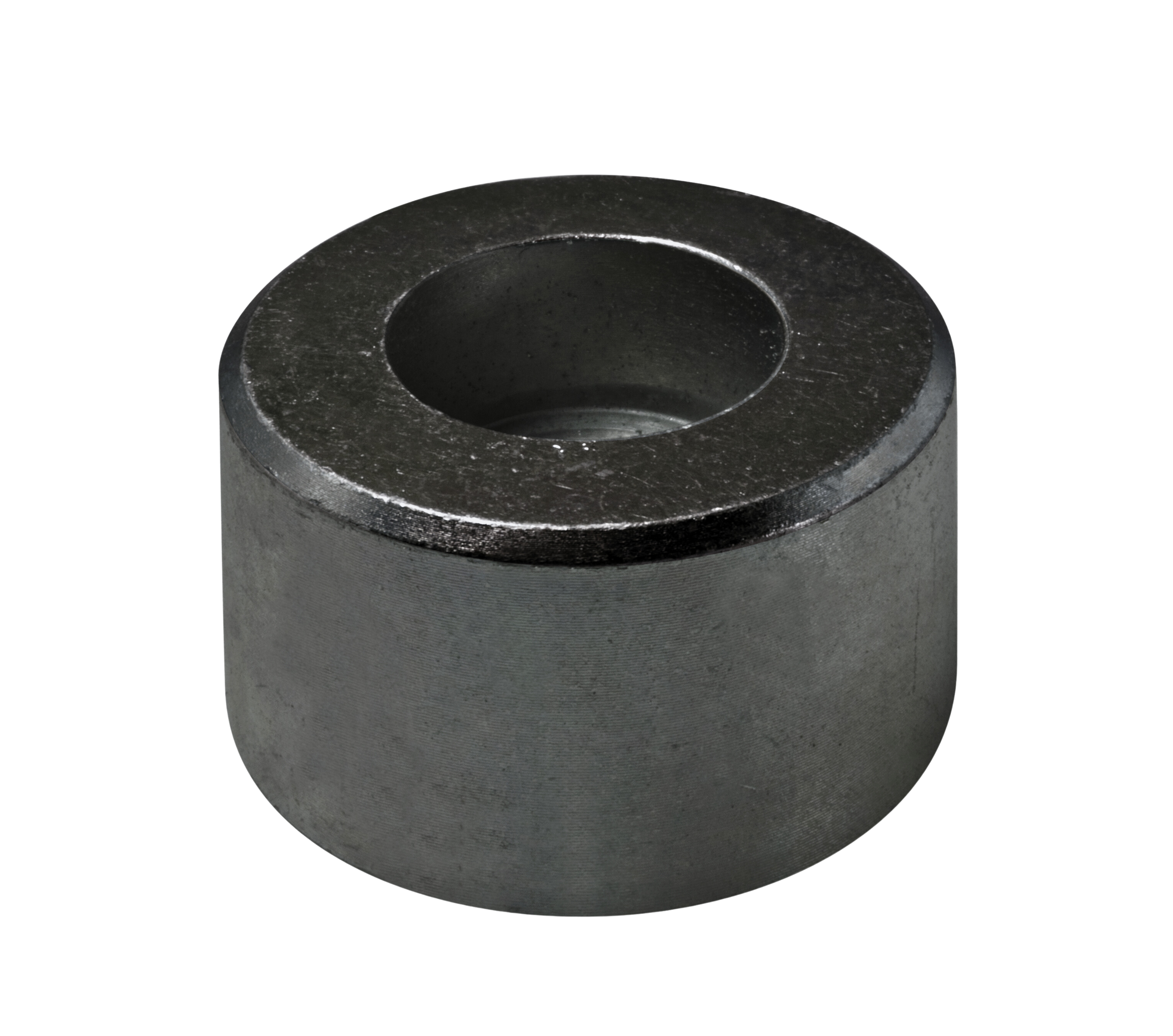

Machine foot | SM 1270-5

Form	Hight h	Product number	Unit price	Buy

Product information "Machine foot | SM 1270-5 "

Material:
NI: stainless steel 1.4305
KU: plastic
ST: steel, zinc plated - Remaining stocks

on request:
STB: Steel, hardened and burnished

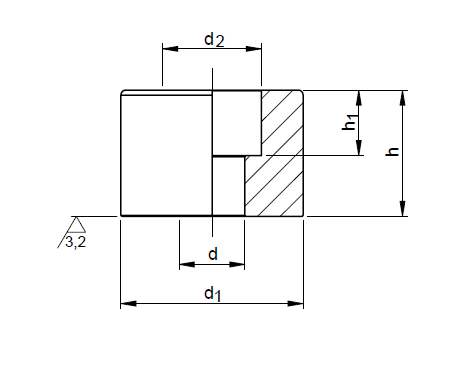

dimensions d / d₂ / h₁ slightly different

RoHS-compliant: yes

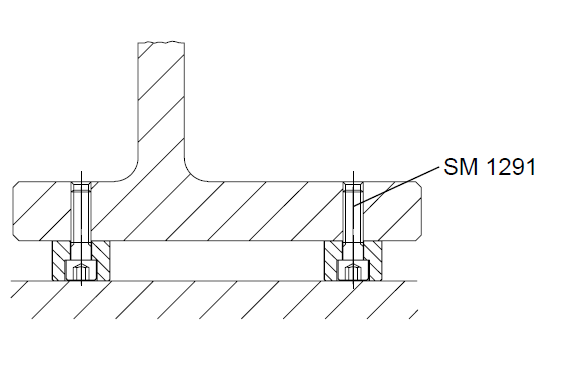

Machine feet are used for load transfer and the elastic mounting of all types of machines.

Compliance:	RoHS compliant
Element type:	Feet / Wheels, Thrust pieces
Material:	Plastic, Stainless steel, Steel
Surface:	Steel - zinc plated
