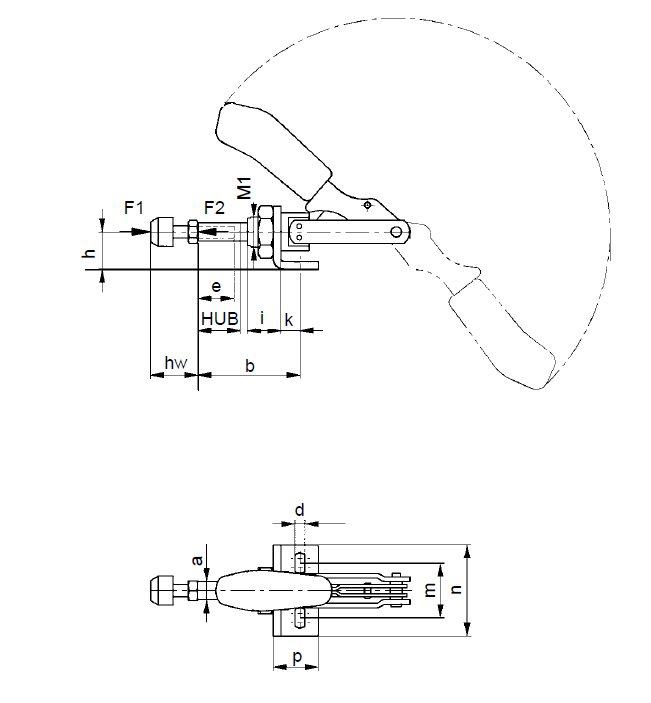

Push-pull type toggle clamp | SM 2120

from €56.13*

€56.13*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

Delivery time: See variant in the table
This product is available in 6 versions.
Show all variants
Size
Product number: 13039

Description Datasheet
Filter
Product information "Push-pull type toggle clamp | SM 2120 "

for push- and pull-clamping
with small angle base

Material:
body: steel
zinc plated and passivated
handle: plastic
high quality oil-resistant, red,
ergonomic handle with large grip surface and soft grip part.
rivets: stainless steel
bushings: case hardened (sizes 2 to 3)
bearings: pre-lubricated
leverparts, rod: tempered steel

Equal operation of rod and lever.
Long rodguide with attaching thread and nut.
Lever can be set to any angle relative to base.
Change operating angles with adjustable stop-pin.
Supplied complete with tempered, galvanized clamping screw SM 2200 to weld on.

on request:
Stainless steel version,
matte-black version,
Handle parts in yellow, blue, green, orange, black.

Clamp type: toggle clamp
Colour of handle: black, blue / black, green / black, orange / black, red / black, yellow / black
Material: Handle - plastic, Steel
Speciality: Handle - oil resistant, Pull Tensioner, Push Tensioner, To screw on, With angled foot

Accessories

Angle base | SM 2120-1
Angle base | SM 2120-1
Angle feetsolidfor push-pull toggle clamps Material: steel Increased range of application due to enlarged height of center line. Fastening by means of 4 screws. For SM 2120-2 size 2 + 3. on request:stainless steel version

From €12.41* incl. VAT
Details
Clamping screw | SM 2200
Clamping screw | SM 2200
for push-pull type toggle clamps Material: ST: steel, tempered, tensile strength class 8.8, galvanized and passivatedNI: stainless steel With nut and removable protective cap made of:oil-resistant NBR + NRhardness 70 Shore A Application forSM 2120     Push-pull type toggle clamp with small angle baseSM 2120-2  Push-pull type toggle clamp, short versionSM 2130     Push-pull type toggle clamp, heavy, with angle baseSM 2130-2  Push-pull type toggle clamp, heavy, with solid leverSM 2130-3  Push-pull type toggle clamp, heavy, with reversible leverSM 2190-1  Pneumatic toggle clamp, push typePlease refer to the datasheet for the exact assignment of sizes.

From €8.06* incl. VAT
Details
Clamping screw | SM 2201
Clamping screw | SM 2201
for push-pull type toggle clamps Material: ST: steel tempered, tensile strength class 8.8, galvanized and passivated with a bonded pressure padmade of oil resistant neoprenehardness 85 Shore Asilicone-free Application forSM 2000       Vertical acting toggle clamp with horizontal base, with open twin armSM 2010       Vertical acting toggle clamp with vertical base, with open twin armSM 2020       Vertical acting toggle clamp with angle base, with open twin armSM 2030       Vertical acting toggle clamp with horizontal base, with solid armSM 2050       Vertical acting toggle clamp with horizontal base, clamping arm with clamping screwSM 2090       Horizontal acting toggle clamp with horizontal base, with open twin armSM 2100        Horizontal acting toggle clamp with vertical base, with open twin armSM 2110        Horizontal acting toggle clamp with angle base, with open twin armSM 2120        Push-pull type toggle clamp with small angle baseSM 2120-2     Push-pull type toggle clamp, short versionSM 2130        Push-pull type toggle clamp, heavy, with angle baseSM 2190-1     Pneumatic toggle clamp, push typeSM 2260       Supporting arm for toggle clampPlease refer to the datasheet for the exact assignment of sizes.

From €3.93* incl. VAT
Details
Protection cap | SM 2250
Protection cap | SM 2250
Rubber nosefor clamping screws Material: Neopren hardness 70 Shore Aoil resistant to prevent damage to delicate components.Fits the clamping screw SM 2200, SM 2205, SM 2220 and SM 2240,for placement on hexagon screw head ISO 272. size 6: According to new standard ISO 4017, marked with a „6“ on its clamping face.size 7: According to old norm DIN 933.

From €1.87* incl. VAT
Details

Similar Items

Push-pull type toggle clamp | SM 2120-2
Push-pull type toggle clamp | SM 2120-2
for push- and pull-clamping short version Material:body: steelgalvanised and passivatedhandle: plastichigh quality oil-resistant, red,ergonomic handle with large grip surface and soft grip part.rivets: stainless steelshoulder screws: temperedbearing spots: pre-lubricatedleverparts, rod: tempered steelLong rod-guide with attaching thread and nut.Supplied complete with tempred, galvanized clamping screw SM 2200.Toggle for direct fit up in metal plates or fictures, using its front attaching thread, or by means of solid base angle SM 2120-1. on request:Stainless steel version.Handle parts in yellow, blue, green, orange, black.

From €58.35* incl. VAT
Details

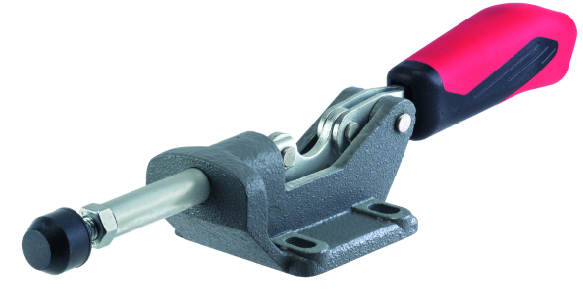

Push-pull type toggle clamp | SM 2130
