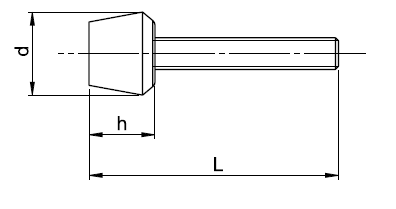

Clamping screw | SM 2201

SCHOLZ MECHANIK GmbH

Size	Product number	Unit price	Buy

Product information "Clamping screw | SM 2201 "

for push-pull type toggle clamps

Material:
ST: steel tempered, tensile strength class 8.8,
galvanized and passivated

with a bonded pressure pad
made of oil resistant neoprene
hardness 85 Shore A
silicone-free

Application for
SM 2000 Vertical acting toggle clamp with horizontal base, with open twin arm
SM 2010 Vertical acting toggle clamp with vertical base, with open twin arm
SM 2020 Vertical acting toggle clamp with angle base, with open twin arm
SM 2030 Vertical acting toggle clamp with horizontal base, with solid arm
SM 2050 Vertical acting toggle clamp with horizontal base, clamping arm with clamping screw
SM 2090 Horizontal acting toggle clamp with horizontal base, with open twin arm
SM 2100 Horizontal acting toggle clamp with vertical base, with open twin arm
SM 2110 Horizontal acting toggle clamp with angle base, with open twin arm
SM 2120 Push-pull type toggle clamp with small angle base
SM 2120-2 Push-pull type toggle clamp, short version
SM 2130 Push-pull type toggle clamp, heavy, with angle base
SM 2190-1 Pneumatic toggle clamp, push type
SM 2260 Supporting arm for toggle clamp
Please refer to the datasheet for the exact assignment of sizes.

Clamp type:	Accessories
Material:	Steel
Speciality:	With protective cap
