Protection cap | SM 2250

SCHOLZ MECHANIK GmbH

111409BER9RxDMiitEm

111409BER9RxDMiitEm

from €1.87*

€1.87*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

Delivery time: See variant in the table

This product is available in 8 versions.

Show all variants

Size

00,00

01,00

02,00

3+4

05,00

06,00

07,00

08,00

Product number: 13089

Description Datasheet

Size	Product number	Unit price	Buy

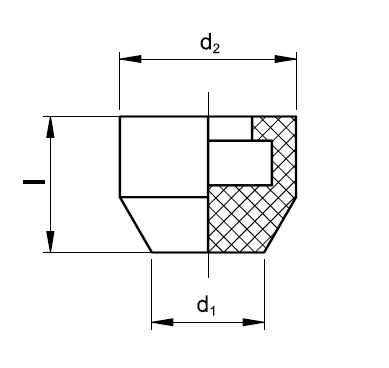

Product information "Protection cap | SM 2250"

Rubber nose
for clamping screws

Material: Neopren
hardness 70 Shore A
oil resistant
to prevent damage to delicate components.

Fits the clamping screw SM 2200, SM 2205, SM 2220 and SM 2240,
for placement on hexagon screw head ISO 272.

size 6: According to new standard ISO 4017, marked with a „6“ on its clamping face.
size 7: According to old norm DIN 933.

Clamp type:	Accessories
Material:	Neoprene
