Retaining cable | SM 1273-86

SCHOLZ MECHANIK GmbH

from €4.68*

€4.68*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

This product is available in 6 versions.

Form

A

B

Length

150

200

300

Product number: 41988

Description Datasheet

Variants table
Form	Length	Product number	Unit price	Buy

Product information "Retaining cable | SM 1273-86 "

with ring or eyelet

Material:
stainless steel coated with clear PVC
ring / eyelet stainless steel

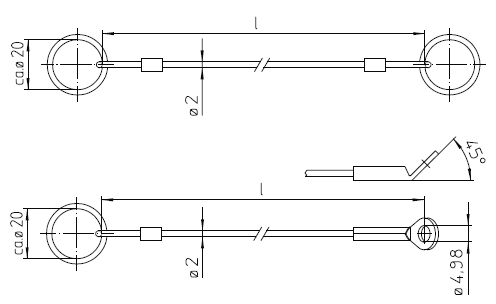

Form A: with two attaching rings
Form B: with attaching ring and eyelet

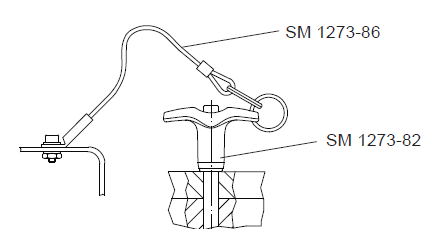

This safety cable and retaining ring is designed to secure the single-acting ball lock pin SM1273-8 and SM1273-82, as well as clamping pin SM1273-84, and socket pin SM 1273-78/79, SM1273-85 against possible loss.
The safety cable can be attached to the component by means of an M05 screw.
The temperature range is up to +80 °C.

RoHS-compliant: yes

Compliance:	RoHS compliant
Material:	Stainless steel
Surface:	clear coated
Type of use:	Ropes / Chains / Rings

Accessories

Locking Pin | SM 1273-78

with axial lock (pawl) Material:plunger:ST: steel, zinc plated, blue passivatedNI: stainless steel 1.4305pawl: stainless steel 1.4301spring: stainless steel 1.4310knob: plastic (Polyamid PA)push button: plastic (Polyamid PA) redtemperaturresistent up to 80 °C black-grey Pressing = unlockingThe locking pins with axial locking are used for quick fixing, connecting and securing various components.Used, for example, as bearing pins that need to be frequently assembled and disassembled.High axial forces are absorbed by the rectangular shape of the locking pawls made of stainless steel sheet.The values in the table (see data sheet) for shear load capacity are theoretically determined and non-binding guidelines without taking a safety factor into account. The suitability of the product must be determined by the user for each application. Liability is excluded.It an easily be fitted with the ball chains SM1273-87.RoHS-compliant: yes

From €10.78* incl. VAT

Details

Ball lock pin | SM 1273-82

Colour: grau,blau/grey,blue | Diameter 1: 16,00 | Length 1: 140

self-lockingStainless steel 1.4305 Material:stainless steelpin part: stainless steel 1.4305handle: Thermoplastic (PA 6)spring: stainless steel handle:BL = grey / blueOR = grey / orangeGR = grey / greySW = black / black Pressing = unlockingFor quickly fastening and securing parts and workpieces. Quickly and easily unlockable for frequently repeated connections, for example interchangeable bearing pins. Temperature range from -30 °C up to +80 °C. Possibility of Attachment for retain cable SM 1273-86. RoHS-compliant: yesThe values for Shearing resistance (two-shear) similar to DIN 50141 in the table (see data sheet) are non-binding guidelines. The suitability of the product must be determined by the user for each application. Liability is excluded.

Variants from €18.53* incl. VAT

€71.03* incl. VAT

Details

Clamping pin | SM 1273-84

Diameter 1: 12,00 | Length 1: 0-05

Ball clamping boltself-lockingwith span compensation Material:pin: stainless steel 1.4305spring: stainless steelhandle: plastic (PA 6) Pressing = unlockingUsed for locking and simultaneously tightly connecting thin walled plates. Clamping distance of 5 mm for clamping of sheets for welding work, for protection, coverings to close doors etc. The advantages of these ball lock pins are corrosion resistants, ergonomic grip, can easily be fitted with the safety cord SM1273-86 or with the ball chains SM 1273-87. The temperature range is from -30 °C up to +80 °C. RoHS-compliant: yes

Variants from €34.64* incl. VAT

€43.10* incl. VAT

Details

Socket pin | SM 1273-85

Socket pinwith spring-loaded balls Material:pin: stainless steel 1.4305spring: stainless steelhandle: plastic (PA 6) For a quick and easy locating and securing of axes and bolts. The advantages of these socket pins are corrosion resistants, ergonomic grip, can easily be fitted with the safety cord SM 1273-86 or with the ball chains SM 1273-87. The temperature range is from -30 °C up to +80 °C. Security Note:Balls are spring-loaded and not locked as in article groups SM 1273-82, SM 1273-83 and SM 1273-84. RoHS-compliant: yes

From €14.43* incl. VAT

Details
