Ball Caster, plain bearing | SM 1275-73

SCHOLZ MECHANIK GmbH

Variants table

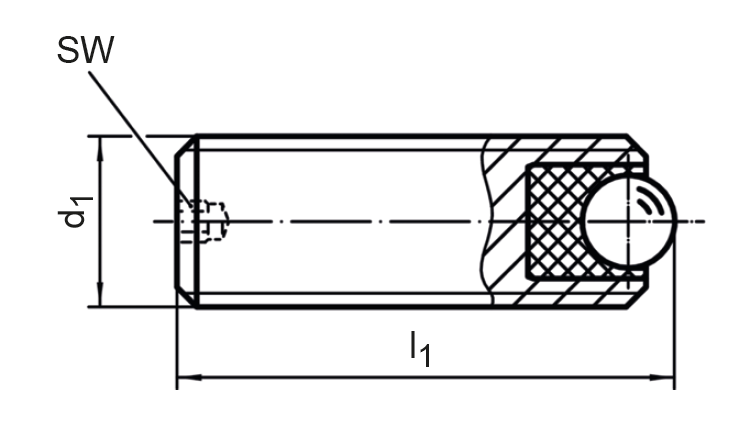

Diameter 1	Length 1	Material	Product number	Unit price	Buy

Product information "Ball Caster, plain bearing | SM 1275-73 "

screwable

Material:
Bearing: plastic
ST: screw: free cutting steel, blackened
ball: ball-bearing steel, hardened
NI: screw: stainless steel 1.4305
ball: stainless steel, hardened

For positioning and aligning of workpieces.
Because of the slide bearing, the ball can roll permanently,
and the surface of the workpiece is protected.
Temperature resistant -50°C to 90°C.
At temperatures > 20°C, the carrying figure decreases linearly.
(Example: at 90°C the load bearing capacity is max. 60%).

RoHS-compliant: yes

Element type:	Ball Transfer Units
Material:	Ball: steel, Stainless steel, Steel
Speciality:	without head / collar
Surface:	Steel - burnished
