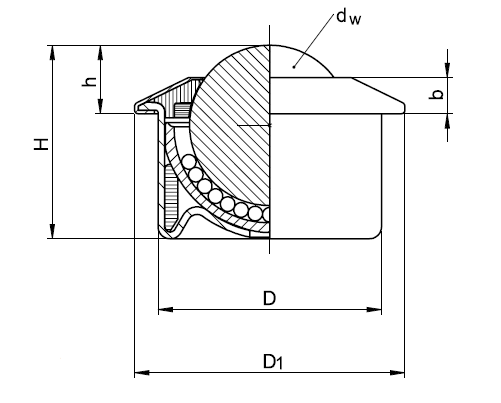

Ball transfer unit with reinforced sheet steel housing

Ball diameter	Form	Product number	Unit price	Buy

Product information "Ball transfer unit | SM 1275-70"

with reinforced sheet steel housing

Material:
Form A: cover and housing: galvanized
Form B: all parts galvanized; balls: stainless steel, hardened
Form C: ball cup, balls and retaining ring made from stainless steel, other parts galvanized

For tolerance rings see SM 1275.80.
For mounting tool see SM 1275.81.
Form C with bottom holes for waste derivation

Element type:	Ball Transfer Units
Material:	Ball: stainless steel, Ball: steel, Stainless steel, Steel
Speciality:	with head / collar
Surface:	Steel - zinc plated
