Ball caster, plain beared | SM 1275-72

SCHOLZ MECHANIK GmbH

from €9.87*

€9.87*

Prices incl. VAT plus shipping costs

Available in 5 days

Delivery time: See variant in the table

This product is available in 2 versions.

Show all variants

Ball diameter

6.5

8.5

Material

Edelstahl/stainless_steel

Product number: 240555

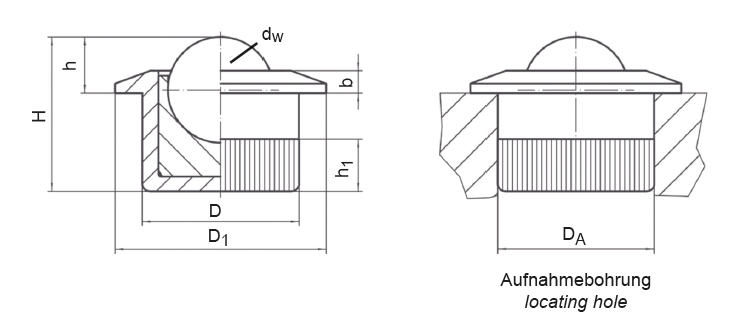

Description Datasheet

Ball diameter	Material	Product number	Unit price	Buy

Product information "Ball caster, plain beared | SM 1275-72 "

for press-fitting

Material:
housing: stainless steel
bearing: plastic
ball: stainless steel, hardened

The ball casters are maintenance-free.
At temperatures > 20°C, the carrying figure decreases linearly.
(Example: at 90°C the load bearing capacity is max. 60%).
Temperature resistant: 90°C to -50°C.

RoHS-compliant: yes

Element type:	Ball Transfer Units
Material:	Ball: stainless steel, Stainless steel
Speciality:	with head / collar
