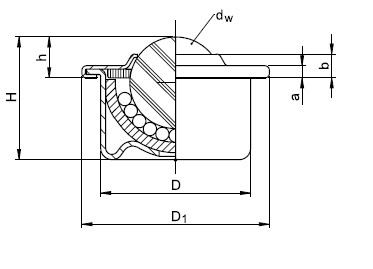

Ball transfer unit | SM 1275-64

Variants table
Ball diameter	Form	Product number	Unit price	Buy

Product information "Ball transfer unit | SM 1275-64"

with plastic-load ball

Material:
Form A: cover and housing galvanized
Form B: all parts galvanized, load balls stainless steel
Form C: all parts from stainless steel

Tolerance rings see SM 1275.80.

Suitable for sensitive items.

Element type:	Ball Transfer Units
Material:	Ball: plastic, Stainless steel, Steel
Speciality:	with head / collar
Surface:	Steel - zinc plated

Accessory Items

Tolerance ring | SM 1275-80

for ball transfer units Material: spring band steelFor the installation of ball transfer unitsSM 1275-63SM 1275-64SM 1275-68SM 1275-70.

From €1.45* incl. VAT

Details

Similar Items

Ball transfer unit | SM 1275-63

with steel housing Material: Form A: cover and housing galvanizedForm B: all parts galvanized, balls stainless steelForm C: all parts from stainless steel Tolerance rings see SM 1275.80.

From €9.57* incl. VAT

Details

Ball transfer unit | SM 1275-65

spring-loadedMaterial:Form A: cover and housing galvanizedForm B: all parts galvanized, load balls made from stainless steel Ball transfer units are mounted under preload into the case on spring elements, immerse when overloading.

From €53.55* incl. VAT

Details

Ball transfer unit | SM 1275-66

with solid steel housing without rim Material:Form A: steel, brightForm B: steel, zinc platedForm C: steel, zinc plated with PA-BallTolerance rings see SM 1275-80. SSuitable for sensitive items.

From €4.57* incl. VAT

Details

Ball transfer unit | SM 1275-67

with solid steel housing without rim Material: steel, bright Form A: without bondForm B: without bond, with felt seal

From €16.99* incl. VAT

Details

Ball transfer unit | SM 1275-68

with solid steel housing Material: Form A: steel, brightForm B: cover and housing galvanizedForm C: All parts galvanized; balls: stainless steel with felt sealsfor high loadstolerance races see SM 1275.80

From €418.81* incl. VAT

Details

Ball transfer unit | SM 1275-69

without housing Material: Form A: cover and ball cup galvanizedForm B: all parts galvanized; balls stainless steel

From €15.47* incl. VAT

Details

Ball transfer unit | SM 1275-70

with reinforced sheet steel housing Material: Form A: cover and housing: galvanizedForm B: all parts galvanized; balls: stainless steel, hardenedForm C: ball cup, balls and retaining ring made from stainless steel, other parts galvanized For tolerance rings see SM 1275.80. For mounting tool see SM 1275.81. Form C with bottom holes for waste derivation

From €14.30* incl. VAT

Details

Ball transfer unit | SM 1275-71

with spring clip Material: Form A: cover and housing galvanizedForm B: all parts galvanized; balls: stainless steel, hardened For mounting tool see SM 1275.81

From €19.64* incl. VAT

Details

Ball caster, plain beared | SM 1275-72

for press-fittingMaterial:housing: stainless steelbearing: plasticball: stainless steel, hardened The ball casters are maintenance-free.At temperatures > 20°C, the carrying figure decreases linearly. (Example: at 90°C the load bearing capacity is max. 60%).Temperature resistant: 90°C to -50°C. RoHS-compliant: yes

From €10.16* incl. VAT

Details

Ball Caster, plain bearing | SM 1275-73

screwable Material:Bearing: plasticST: screw: free cutting steel, blackenedball: ball-bearing steel, hardenedNI: screw: stainless steel 1.4305ball: stainless steel, hardened For positioning and aligning of workpieces.Because of the slide bearing, the ball can roll permanently, and the surface of the workpiece is protected.Temperature resistant -50°C to 90°C.At temperatures > 20°C, the carrying figure decreases linearly. (Example: at 90°C the load bearing capacity is max. 60%). RoHS-compliant: yes

From €10.96* incl. VAT
