Clamping device "actima", | SM 1088-9

SCHOLZ MECHANIK GmbH

Form	Product number	Unit price	Buy

Product information "Clamping device "actima", | SM 1088-9"

push-pull clamps

Material:
housing: Thermoplastic, black
body: steel, blackened
ball knob: DIN 7708 - thermosetting plastic (PF 31) red similar to RAL 3003
accessories: steel, blackened

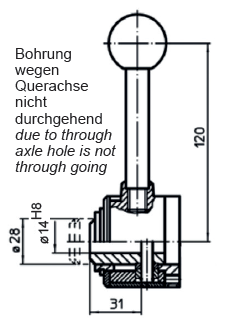

Form QRZ: with transverse axis in the bore, pull to right
Form QLZ: with transverse axis in the bore, pull to left
Form BRZ: with throughgoing bore, pull to right
Form BLZ: with throughgoing bore, pull to left
Form QRD: with transverse axis in the bore, push to right
Form QLD: with transverse axis in the bore, push to left
Form BRD:with throughgoing bore, push to right
Form BLD: with throughgoing bore, push to left

Accessory
Form K: Taper
Form P: V-block
Form S: Disc

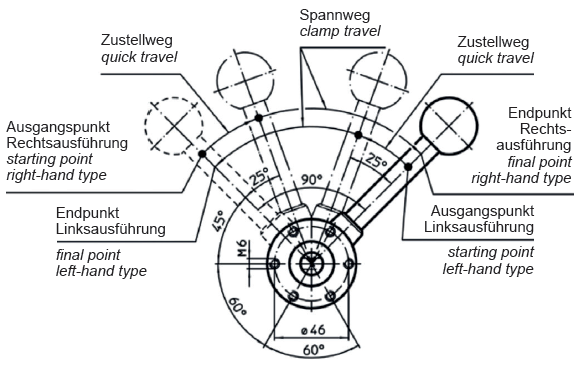

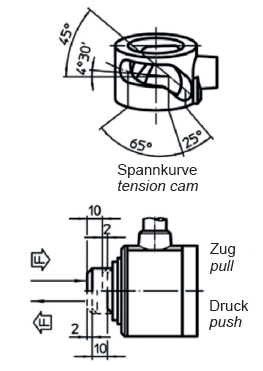

The compact clamping element can be converted between pull and push clamping
strain, depending on the model.
The travel path is 10 mm.

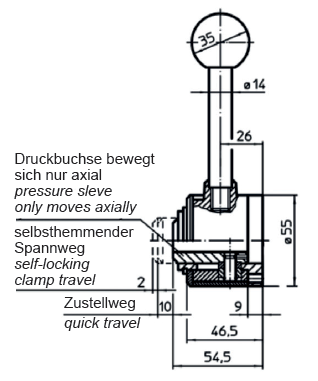

Within the short clamp travel of 2 mm, self-locking occurs in any position.
The maximum permitted clamping force is 4.9 kN.

RoHS-compliant: yes

Colour:	red handle
Material:	Plastic, Steel
Surface:	Steel - burnished
Type:	Levers and tensioners
