Nutenstein, flach

Zubehör

Groove scraper | SM 1105-1

Groove scraper Material: steel, handle plastic (sizes 22 - 32; 36 - 54) RoHS-compliant: yes

From €7.47* incl. VAT

Cylindrical stop | SM 1138

Stop piece Material: cylindrical stop: steel, case hardened and groundholding plate: steel, blackened The straight guide enables a quick and precise location of the workpiece. The short form, which is ground to a height tolerance of ± 0,01 mm, can also be used as a seating. RoHS-compliant: yes

From €77.92* incl. VAT

Details

Ähnliche Artikel

T-bolt -DIN 787 | SM 1105

Material: steel, heat-treated M06 - M12 grade: 10.9M14 - M42 grade: 8.8M10 - M24 grade: 12.9 forged, T-slot guid-faces milled, rolled thread. RoHS-compliant: yes

From €9.82* incl. VAT

Details

T-nut, semi-finished - DIN 508 | SM 1131

Material: heat-treated steel These blanks allow economical manufacture of T-nuts with non standard threads.Heat treatment to tensile strength class 10, i.e. 22 - 32 HRc. Hardening: 880°C - 45 minutes, quench in oil of 75°C and temper at 550°C - 2 hours. RoHS compliant: yes on request:individual sizes made of stainless steel

From €1.94* incl. VAT

Details

Nut for T-slots | SM 1132

"rhombus" Material: tempered, grade 10, blackened Lower load capacities compared with comparable sizes of DIN 508 due to reduced bearing surface in the T-slots. The rhombus nuts can be placed from above. They are particularly useful for long T-slots or when the occupancy of the machine table does not allow the lateral insertion of clamping screws or t-nuts. Application: Insert from above, then turn and pay attention to the stop in the groove. Only then is the full clamping force assured. RoHS-compliant: yes

From €3.32* incl. VAT

Details

Nut for T-slots, long | SM 1134

long Material: heat-treated steel, tempered, grade 10, blackened This extended form safegards the T-slots of precision machine tables. RoHS-compliant: yes

From €4.65* incl. VAT

Details

Nut for T-slots - DIN 508 | SM 1135

DIN 508 / ISO 299 Material:ST 10: heat-treated steel, tempered, grade 10, blackened ST 8: heat-treated steel, quality 8, bright (on request)NI: Stainless steel 1.4301 (on request) Not all dimensions are part of the german DIN. RoHS-compliant: yes

From €1.77* incl. VAT

Details

T-nut - DIN 508 | SM 1136-1

slip-proof DIN 508 / ISO 299 Material: heat-treated steel, tempered, grade 10, blackenedspring element: ball-bearing steel, hardened The spring element avoids vertical and horizontal slipping of T-nut. RoHS-compliant: yes

From €8.48* incl. VAT

Details

T-nut, loose - DIN 6323 | SM 1137

T-nut, loose DIN 6323 Material: steel, case hardened, blackened and ground Used for locating fixtures and clamping elements on machine tables with T-slots to DIN 650. They remain as accessories with the machine. Being simply pushed into position after the fixture or clamping element has been roughly positioned, they cannot cause damage to the machine as could protruding fixed slot tenons or low slot tenons. Form A: b1 > b2Form B: b1 = b2Form C: b1 < b2 RoHS-compliant: yes

From €30.04* incl. VAT

Details

Fixed slot tenon | SM 1137-1

Fixed slot tenon Material: steel, case-hardened, blackened, ground These fixed type tenons are screwed in pairs into the standard set slots with 20 mm width of vices or fixtures. By changing the tenons you can work on machines with different slot sizes. For very heavy fixtures we recomend the use of loose type tenons SM 1137 DIN 6323. RoHS-compliant: yes

From €32.80* incl. VAT

Details

Carrier block - DIN 2079 | SM 1137-2

Drive block Material: alloyed case-hardened steelcase hardenedblackened, ground Form A: for spindle head30 - 60Form B: for spindle head 60Form C: for spindle head 30 - 50 RoHS-compliant: yes

From €12.84* incl. VAT

Details

Variants table
Width	Product number	Unit price	Buy

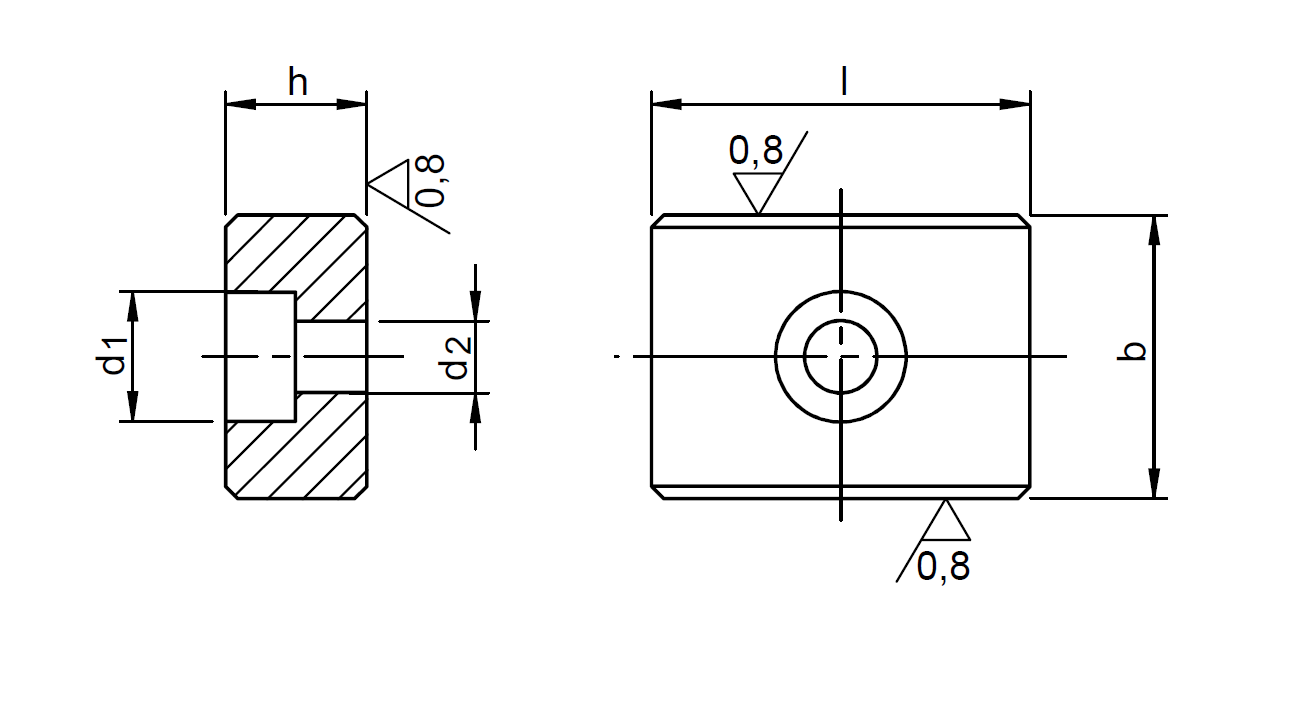

Product information "Flat sliding block | SM 1136 "

Material:
steel, case-hardened
blackened and ground

Use, where a fixture is always used on the same
machine, use for locating fixtuures and clamping
elements onto maschine tables with T-slots to DIN
650.
For very heavy fixtures we recommend the use
of loose type tenons SM 1137 DIN 6323.

RoHS-compliant: yes

Material:	Steel
Surface:	Steel - burnished
Type:	T-Slot Nuts and Accessories

Flat sliding block | SM 1136

Material: steel, case-hardenedblackened and ground

Material:
steel, case-hardened
blackened and ground
