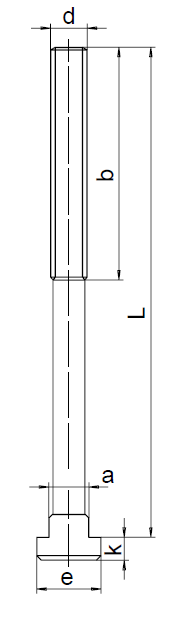

T-bolt -DIN 787 | SM 1105

SCHOLZ MECHANIK GmbH

Diameter	Groove a	Length	Quality	Product number	Unit price	Buy

Product information "T-bolt -DIN 787 | SM 1105 "

Material: steel, heat-treated

M06 - M12 grade: 10.9
M14 - M42 grade: 8.8
M10 - M24 grade: 12.9

forged,
T-slot guid-faces milled,
rolled thread.

RoHS-compliant: yes

DIN / ISO:	DIN 787 / ISO 299 and similar
Element type:	Screws / Nuts
Material:	Steel
Type:	T-Slot Nuts and Accessories

Zubehör

"Crocodile“ clamp |SM 1105

"Crocodile“ clamp |SM 1105

with counterholder, adjustable Material: steelbody: tempered and zinc plated Form A: without stud boltForm B: with stud bolt With captive compression piece and counter bearing. Specified clamping forces in optimal clamping position (smallest distance from the clamping screw to the clamping point). Clamping forces can vary depending clamping, strength class of the clamping screw and condition of the thread (lubrication). Use for all clamping tasks over T-grooves and nuten und threaded holes. The compression piece and the counterholder are connected undetachably to the clamping shoe. The clamping plate is equipped with two clamping surfaces and can be easily turned depending on use.RoHS-compliant: yes

From €87.71* incl. VAT

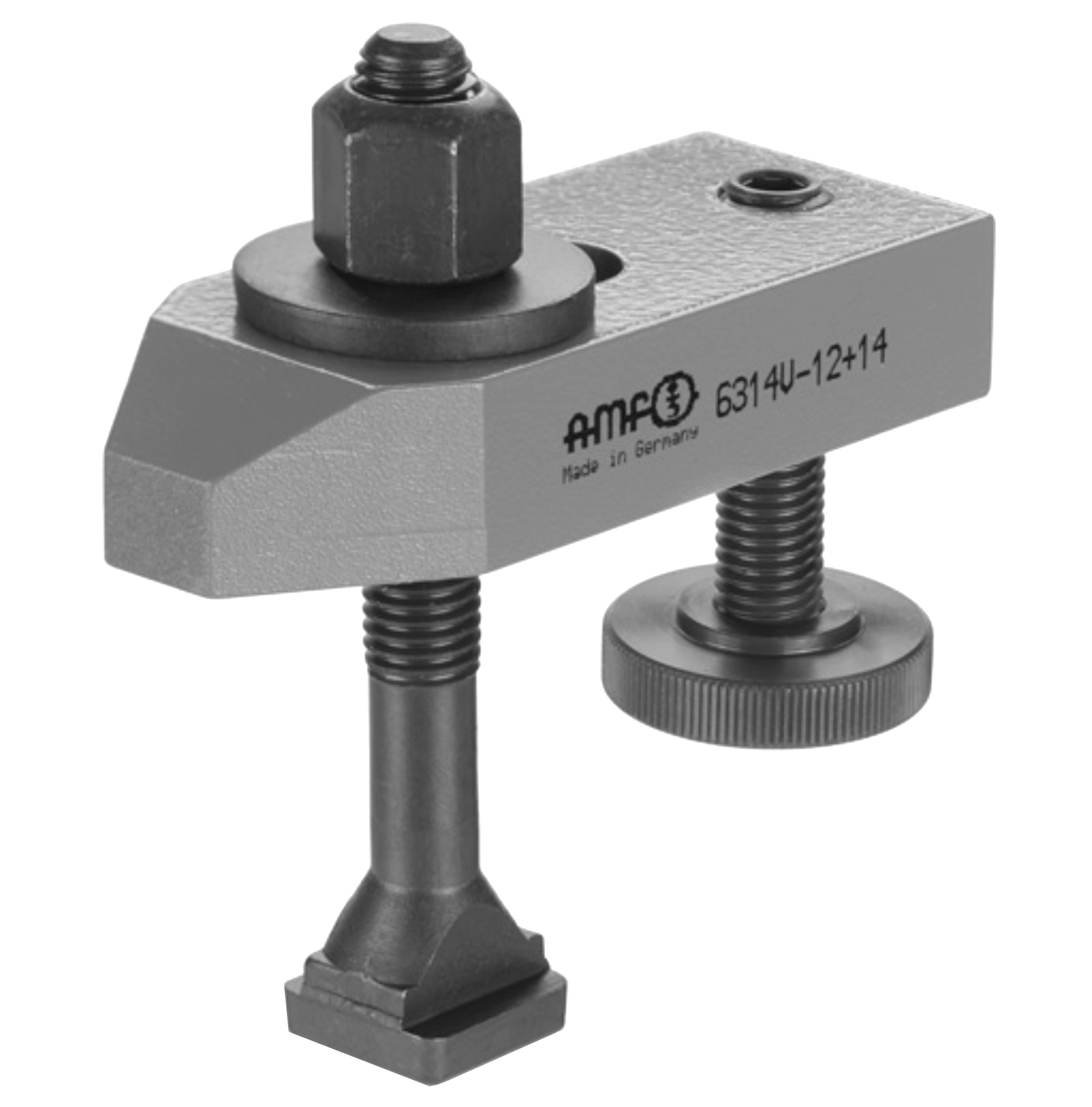

Plain clamp, adjustable | SM 1083
