Product information "T-nut, loose - DIN 6323 | SM 1137"

T-nut, loose
DIN 6323

Material: steel, case hardened, blackened and ground

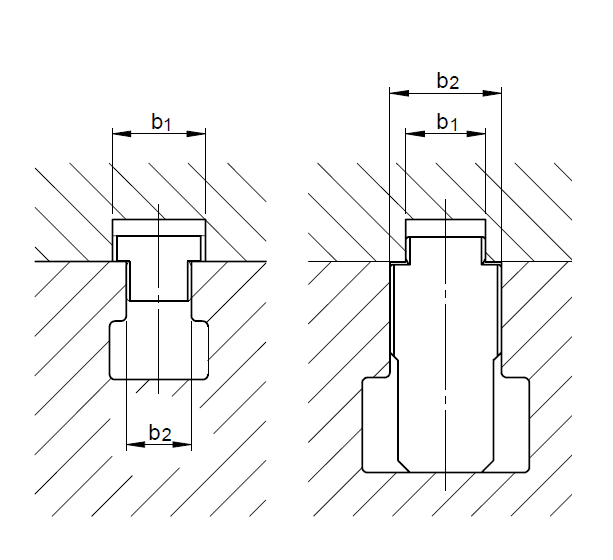

Used for locating fixtures and clamping elements on machine tables with T-slots to DIN 650.
They remain as accessories with the machine.
Being simply pushed into position after the fixture or clamping element has been roughly positioned,
they cannot cause damage to the machine as could protruding fixed slot tenons or low slot tenons.

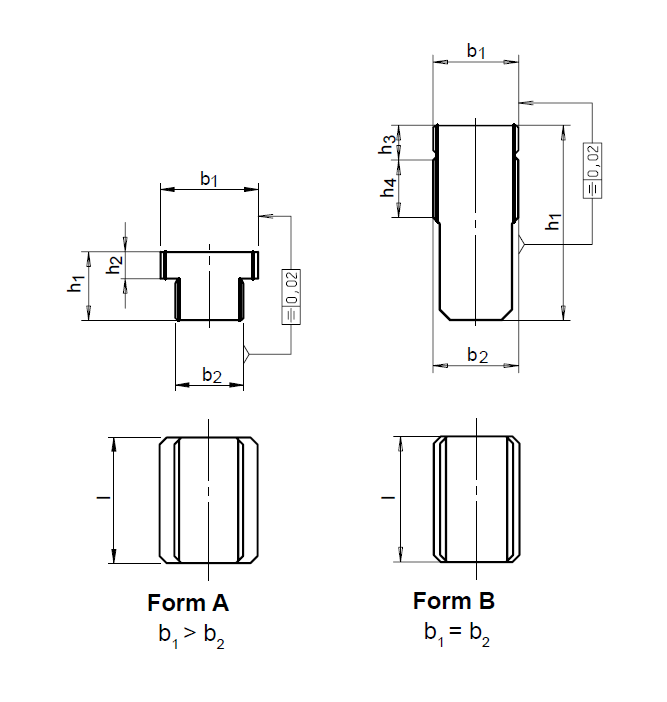

Form A: b1 > b2
Form B: b1 = b2

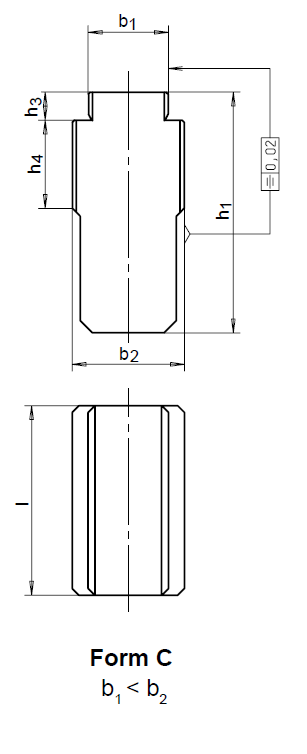

Form C: b1 < b2

RoHS-compliant: yes

DIN / ISO:	DIN 6323
Material:	Steel
Surface:	Steel - burnished
Type:	T-Slot Nuts and Accessories
