Product information "Hexagon nut | SM 1120 "

with spherical contact surface on one side
DIN 6330 and similar

Material:
ST: steel, grade 10
NI: stainless steel

Article with selection option with "SW"
correspond to the old standard.

Suitable for this parts:

Flat end matching hardened washers SM 1125 / DIN 6340.

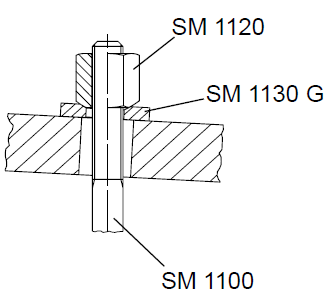

With spherical end matching taper face of washers SM 1130D or G / DIN 6319 D or G.

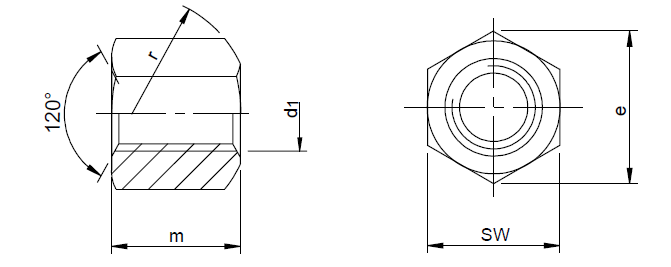

Ball radius "r" suitable for tapered cups SM 1130 D / DIN 6319.
To compensate for non-parallel clamping surfaces. m = 1.5 x d.

RoHS-compliant: yes

DIN / ISO:	DIN 6330 and similar
Element type:	Screws / Nuts
Material:	Stainless steel, Steel
