Plain clamp, adjustable | SM 1083

SCHOLZ MECHANIK GmbH

Variants table
Form	Groove a	Product number	Unit price	Buy

Product information "Plain clamp, adjustable | SM 1083 "

with adjusting screw

Material:
Clamp: heat treated steel, varnished
Support screw: heat-treated steel
T-slot bolt: tempered steel

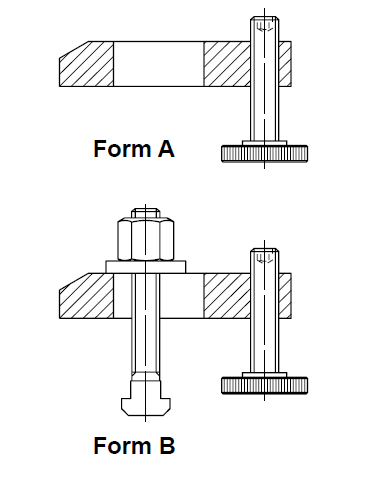

Form A: without T-bolt
Form B: with T-bolt

RoHS-compliant: yes

Form A: Clamps without clamping screw are available in sizes 12 and 14, 16 and 18 as well as 20 and 22.

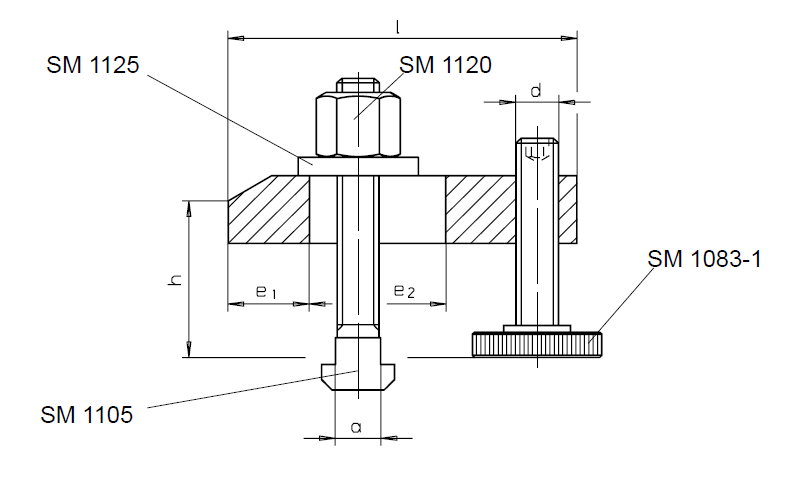

Form B: The height h depends on the groove depth according to DIN 650 and the screw-in length of the nut.

The large clamping range enables flexible use when clamping workpieces and components, e.g. in fixture construction, mechanical engineering and toolmaking.

Element type:	Clamping iron
Material:	Quenched and tempered steel
Surface:	varnished
Type:	Mechanical clamping elements

Similar Items

Clamp - DIN 6314 | SM 1060

flat, simple form Material: ST: heat treated steelvarnishedAL: Aluminium RoHS-compliant: yes (*marked items not acc. to DIN 6314)The large clamping range enables flexible use when clamping workpieces and components, e.g. in fixture construction, mechanical engineering and toolmaking.

From €11.04* incl. VAT

Details

Clamp with ball support | SM 1061

with flattened ballsim. to DIN 6314 clamp: heat treated steelblackenedball: ball-bearing steel hardened and bright Due to the flexible supported ball, these clamps can achieve distortion-free clamping to a large extent.Ball secured against turning.The large clamping range enables flexible use when clamping workpieces and components, e.g. in fixture construction, mechanical engineering and toolmaking. RoHS-compliant: yes

From €35.84* incl. VAT

Details

Step clamp | SM 1065

Material: heat treated steelvarnishedCan be used withBoxed set of assorted clamping elements (in strong wooden box) SM 1086,Universal step block set (in strong wooden box) SM 1086-1 andUniversal step block (single) SM 1086-2.The large clamping range enables flexible use when clamping workpieces and components, e.g. in fixture construction, mechanical engineering and toolmaking. RoHS-compliant: yes

From €18.46* incl. VAT

Details

Clamp, forked - DIN 6315 B | SM 1070

bevelled Material: heat treated steelvarnished RoHS-compliant: yesThe large clamping range enables flexible use when clamping workpieces and components, e.g. in fixture construction, mechanical engineering and toolmaking.

From €13.26* incl. VAT

Details

Forked clamp with nose | SM 1071

Material: heat treated steelvarnished RoHS-compliant: yesThe large clamping range enables flexible use when clamping workpieces and components, e.g. in fixture construction, mechanical engineering and toolmaking.

From €42.49* incl. VAT

Details

Clamp with goose-neck - DIN 6316 | SM 1080

From €23.65* incl. VAT

Details

Adjustable clamp | SM 1084

cranked, with goose-neck Material: Clamp: heat treated steel, varnishedSupport screw: heat-treated steelT-slot bolt: tempered steelForm A: without T-boltForm B: with T-bolt RoHS-compliant: yesForm A: Clamps without clamping screw are available in sizes 12 and 14, 16 and 18 as well as 20 and 22. Form B: The height h depends on the groove depth according to DIN 650 and the screw-in length of the nut.The large clamping range enables flexible use when clamping workpieces and components, e.g. in fixture construction, mechanical engineering and toolmaking.

From €46.14* incl. VAT

Details

Accessory Items

Adjusting screw | SM 1083-1

Material: heat treated steelgrade 8.8 RoHS-compliant: yes

From €19.49* incl. VAT

Details

Nut for T-slots - DIN 508 | SM 1135

Material: Steel | Size: 14 | Thread: M08

DIN 508 / ISO 299 Material:ST 10: heat-treated steel, tempered, grade 10, blackened ST 8: heat-treated steel, quality 8, bright (on request)NI: Stainless steel 1.4301 (on request) Not all dimensions are part of the german DIN. RoHS-compliant: yes

Variants from €1.77* incl. VAT

€3.13* incl. VAT

Details

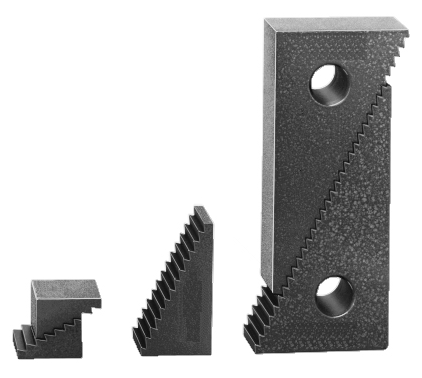

Universal step block | SM 1086-2

Universal step block (single) Material: heat-treated steel, varnished Steps 4.65 mm high and 2.30 mm wide. Can be combined with clamps SM 1065. All three sizes can be combined with each other. The clamping pads are also available in a wooden box in the following combination:8 pieces size 1,8 pieces size 2,4 pieces size 3,available as a set: see SM 1086-1. RoHS-compliant: yes

From €8.58* incl. VAT

Details

Stud screw - DIN 6379 | SM 1100

Diameter: M20 | Length: 125 | Quality: 12.9

Material: steel, heat-treated: M06 - M12: grade 10.9M14 - M42: grade 8.8M12 - M24: grade 12.9 rolled threadRemaining quantities are available from SM 1100M22X250 8.8, SM 1100M22X350 8.8. The articles are not available for re-purchase. RoHS-compliant: yes

Variants from €1.38* incl. VAT

€14.70* incl. VAT

Details

T-bolt -DIN 787 | SM 1105

Material: steel, heat-treated M06 - M12 grade: 10.9M14 - M42 grade: 8.8M10 - M24 grade: 12.9 forged, T-slot guid-faces milled, rolled thread. RoHS-compliant: yes

From €9.82* incl. VAT

Details

Washer, ground | SM 1125-1

surface-ground on both sidessim. to DIN 6340 Material: steel, hadened and on both sides surface grinded RoHS-compliant: yes

From €3.25* incl. VAT

Details

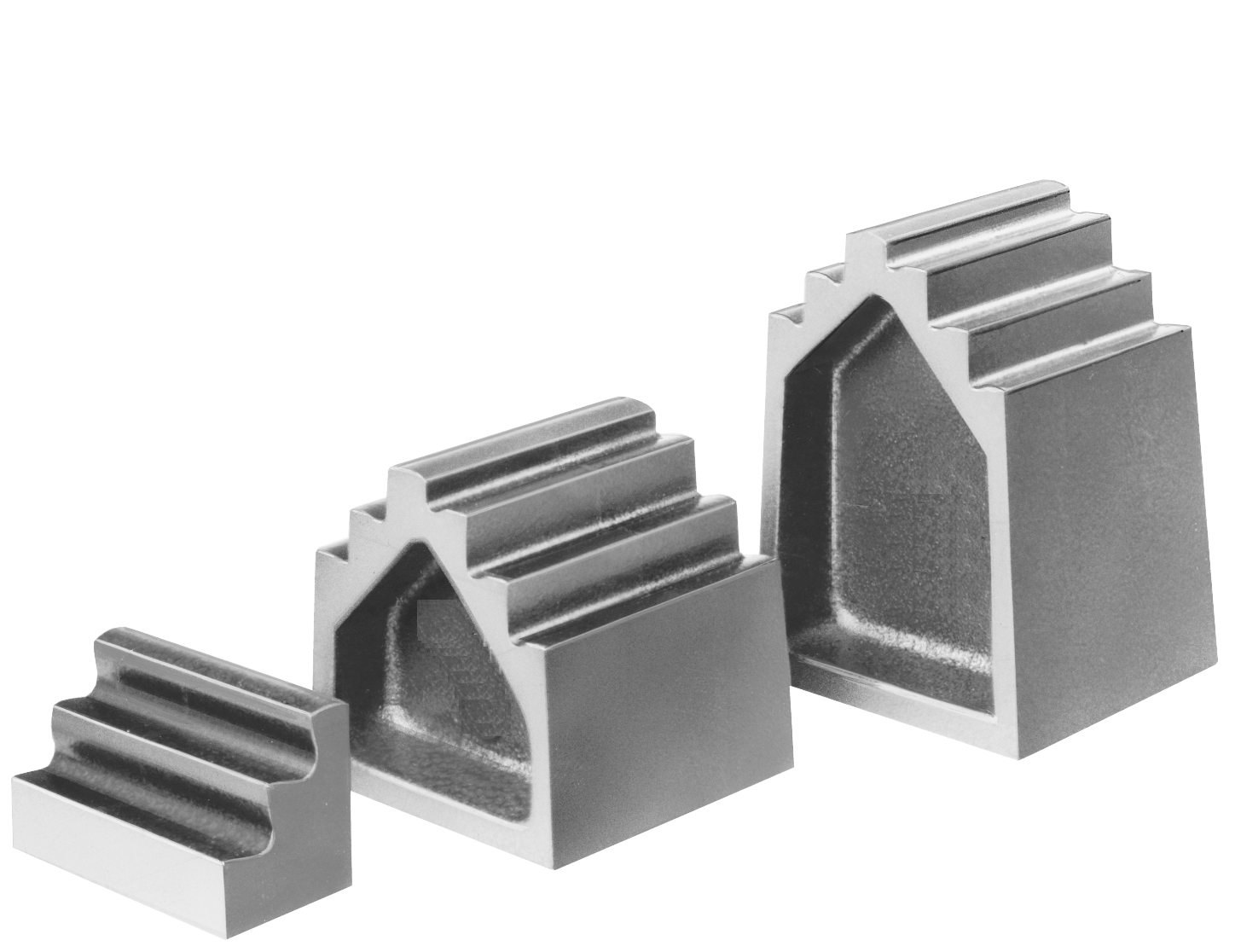

Step block - DIN 6318 | SM 1140-1
