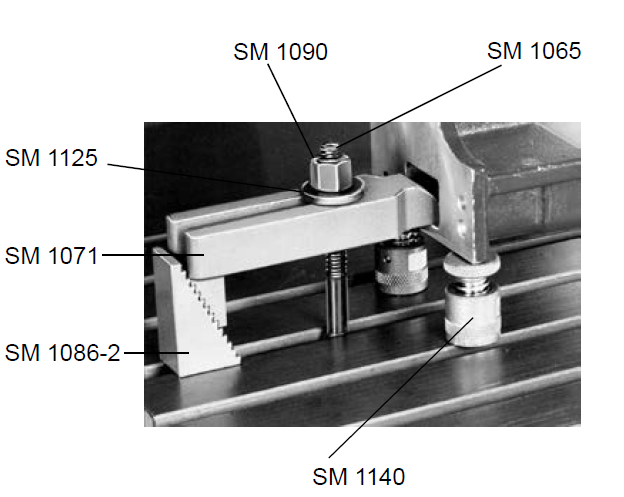

Forked clamp with nose | SM 1071

SCHOLZ MECHANIK GmbH

Variants table
Length 1	Material	Width 1	Product number	Unit price	Buy

Product information "Forked clamp with nose | SM 1071 "

Material:
heat treated steel
varnished

RoHS-compliant: yes

The large clamping range enables flexible use when clamping workpieces and components, e.g. in fixture construction, mechanical engineering and toolmaking.

Element type:	Clamping iron
Material:	Quenched and tempered steel
Surface:	varnished
Type:	Mechanical clamping elements
