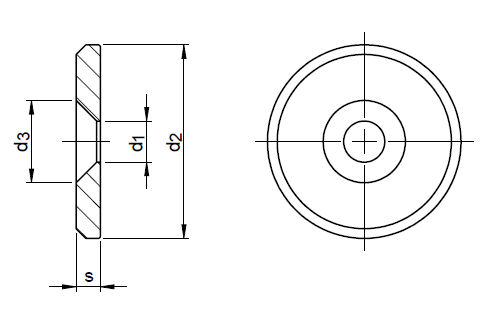

Spacing washer | SM 1126

SCHOLZ MECHANIK GmbH

Diameter 1	Diameter 2	Material	Product number	Unit price	Buy

Product information "Spacing washer | SM 1126 "

for countersunk screws

Material:
ST: steel, unhardened, zinc coated
NI: stainless steel
Please inquire:
STB: Steel, turned, burnished

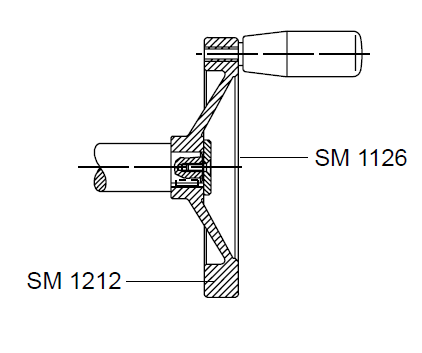

Spacing washers are fastened with countersunk screws DIN 963 or DIN 7991 at the front faces of shaft ends and close these as a collar. Unwanted turning or loosening of the washer can be avoided with a cylindrical pin.

RoHS-compliant: yes

Element type:	Discs
Material:	Stainless steel, Steel
Surface:	Steel - zinc plated
Type:	Mechanical clamping elements
