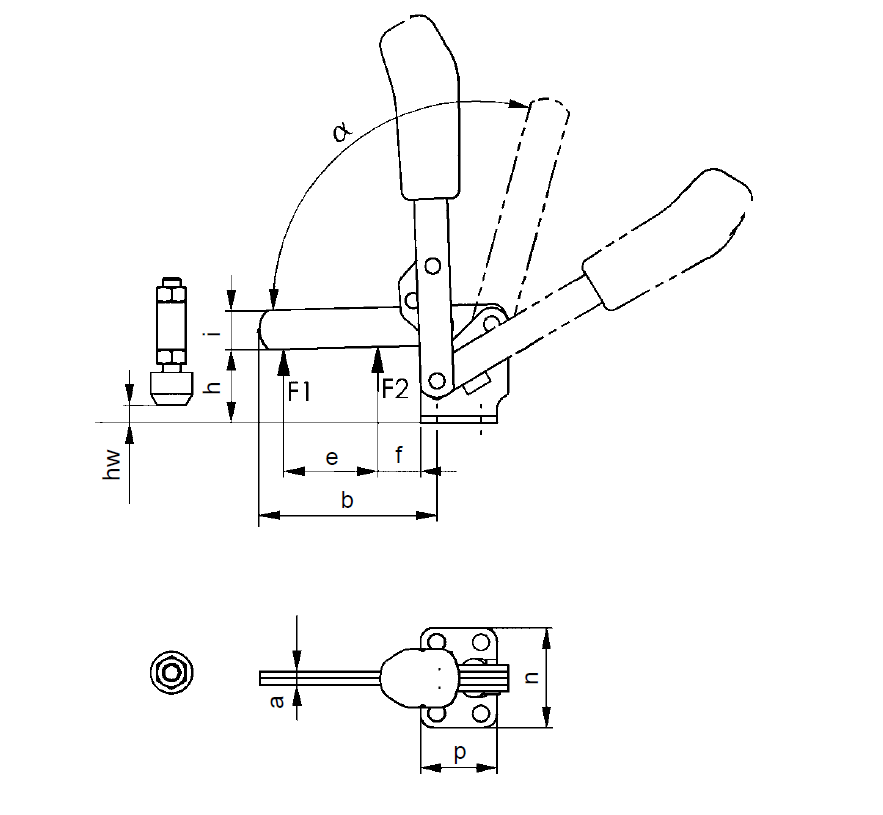

Vertical acting toggle clamp | SM 2030

from €53.54*

€53.54*

Delivery time: 1-3 days working days

This product is available in 4 versions.

Size

To create an offer for this item, please add it to your shopping cart. From there you can create the quote with all the necessary details.

Product number: 12993

Description Datasheet

Variants table
Size	Product number	Unit price	Buy

Product information "Vertical acting toggle clamp | SM 2030 "

with solid arm
and horizontal base

body: steel,
zinc plated and passivated
handle: plastic
high quality oil-resistant, red.
ergonomic handle with large grip surface and soft grip part.
rivets: stainless steel
bushings: case hardened and greased
bearings: pre-lubricated

Safety clamping piece with finger protection.
With bearing spots greased.
Supplied complete with tempered, galvanized clamping screw SM 2205 to weld on.
Change operating angles with adjustable stop-pin.

on request:
Handle parts in yellow, blue, green, orange, black.

Clamp type:	Vertical clamping device
Colour of handle:	black, blue / black, green / black, orange / black, red / black, yellow / black
Material:	Handle - plastic, Steel
Speciality:	Handle - oil resistant, To screw on, with horizontal base, with massive support arm, with weldable sleeve with pressure screw
