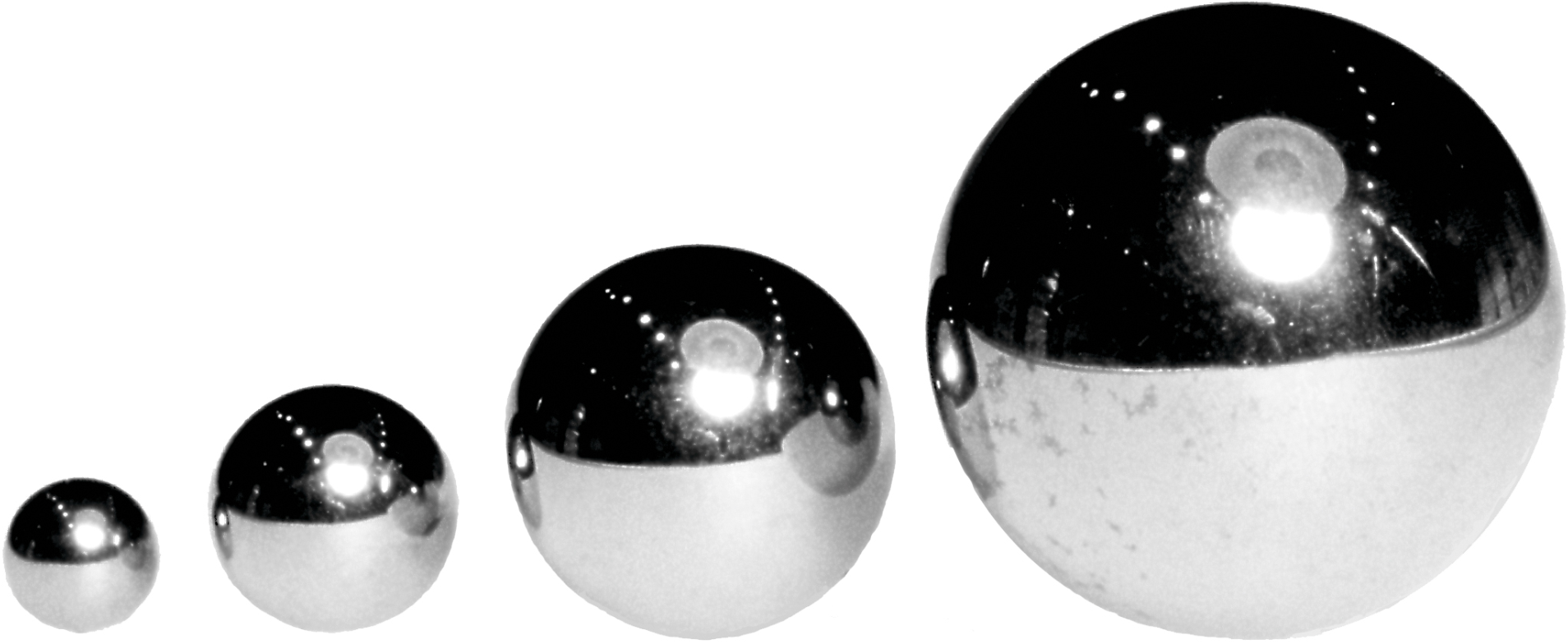

sim. to DIN 5401Material:01: 1.3505, hardened HRc 63hardened and polished
Tolerance of each class, up to ∅ 25,0 = 2 μm; Maximum form-tolerance 1 μmOn request:02: 1.001005: 1.4034, stainless steel hardened HRc 5506: 1.4301, stainless steel not hardened07: 1.4401, stainless steel08: 1.354120: carbide K20ceramic, rubin
for press-fittingMaterial:housing: stainless steelbearing: plasticball: stainless steel, hardened
The ball casters are maintenance-free.At temperatures > 20°C, the carrying figure decreases linearly. (Example: at 90°C the load bearing capacity is max. 60%).Temperature resistant: 90°C to -50°C.
RoHS-compliant: yes
screwable
Material:Bearing: plasticST: screw: free cutting steel, blackenedball: ball-bearing steel, hardenedNI: screw: stainless steel 1.4305ball: stainless steel, hardened
For positioning and aligning of workpieces.Because of the slide bearing, the ball can roll permanently, and the surface of the workpiece is protected.Temperature resistant -50°C to 90°C.At temperatures > 20°C, the carrying figure decreases linearly. (Example: at 90°C the load bearing capacity is max. 60%).
RoHS-compliant: yes
with steel housing
Material: Form A: cover and housing galvanizedForm B: all parts galvanized, balls stainless steelForm C: all parts from stainless steel

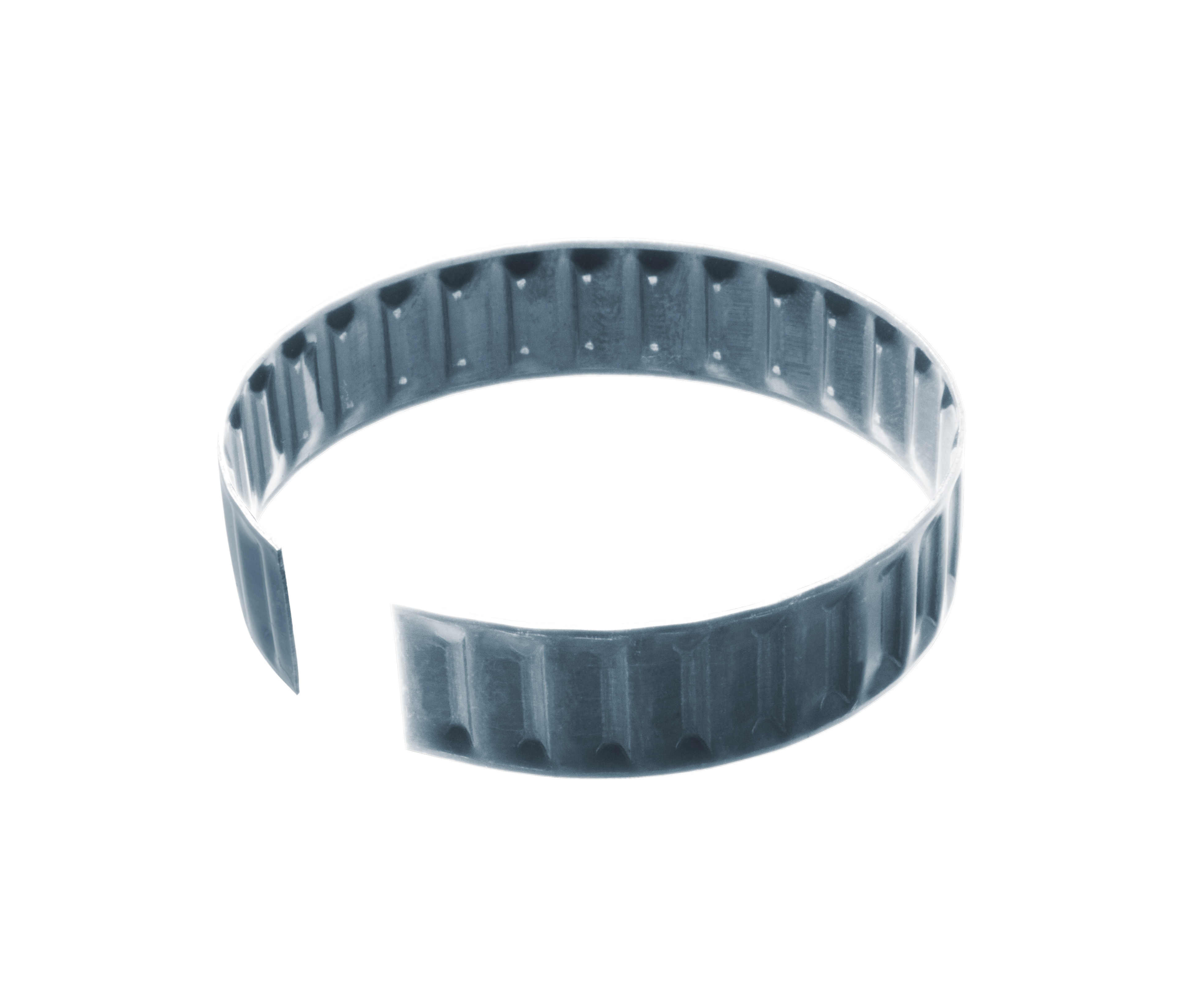

Tolerance rings see SM 1275.80.
with plastic-load ball
Material:Form A: cover and housing galvanizedForm B: all parts galvanized, load balls stainless steelForm C: all parts from stainless steel
Tolerance rings see SM 1275.80.
Suitable for sensitive items.
spring-loadedMaterial:Form A: cover and housing galvanizedForm B: all parts galvanized, load balls made from stainless steel
Ball transfer units are mounted under preload into the case on spring elements, immerse when overloading.
with solid steel housing without rim
Material:Form A: steel, brightForm B: steel, zinc platedForm C: steel, zinc plated with PA-BallTolerance rings see SM 1275-80.
SSuitable for sensitive items.
with solid steel housing
Material: Form A: steel, brightForm B: cover and housing galvanizedForm C: All parts galvanized; balls: stainless steel
with felt sealsfor high loadstolerance races see SM 1275.80
with reinforced sheet steel housing
Material: Form A: cover and housing: galvanizedForm B: all parts galvanized; balls: stainless steel, hardenedForm C: ball cup, balls and retaining ring made from stainless steel, other parts galvanized
For tolerance rings see SM 1275.80. For mounting tool see SM 1275.81. Form C with bottom holes for waste derivation
with spring clip
Material: Form A: cover and housing galvanizedForm B: all parts galvanized; balls: stainless steel, hardened
For mounting tool see SM 1275.81
