Clamping screw | SM 2230

SCHOLZ MECHANIK GmbH

from €22.87*

€22.87*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

Delivery time: See variant in the table

This product is available in 4 versions.

Show all variants

Size

01,00

02,00

03,00

04,00

06,00

Product number: 13065

Description Datasheet

Size	Product number	Unit price	Buy

Product information "Clamping screw | SM 2230 "

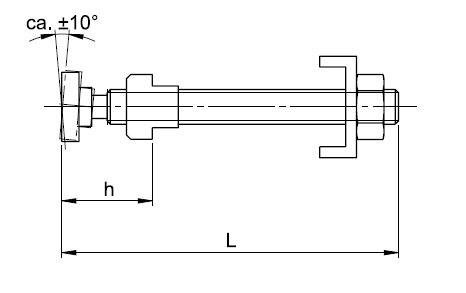

Self-aligning
for open twin-arm

Material:
ST: steel
tempered, galvanized, passivated

with nut and thrust pad
size 1 - 3: with washer/nut-element
size 4 - 6: with T-nut

Application for
SM 2000 Vertical acting toggle clamp with horizontal base, with open twin arm
SM 2010 Vertical acting toggle clamp with vertical base, with open twin arm
SM 2020 Vertical acting toggle clamp with angle base, with open twin arm
SM 2090 Horizontal acting toggle clamp with horizontal base, with open twin arm
SM 2100 Horizontal acting toggle clamp with vertical base, with open twin arm
SM 2110 Horizontal acting toggle clamp with angle base, with open twin arm
SM 2260 Supporting arm for toggle clamp
Please refer to the datasheet for the exact assignment of sizes.

Clamp type:	Accessories
Material:	Steel
Speciality:	With articulated foot
