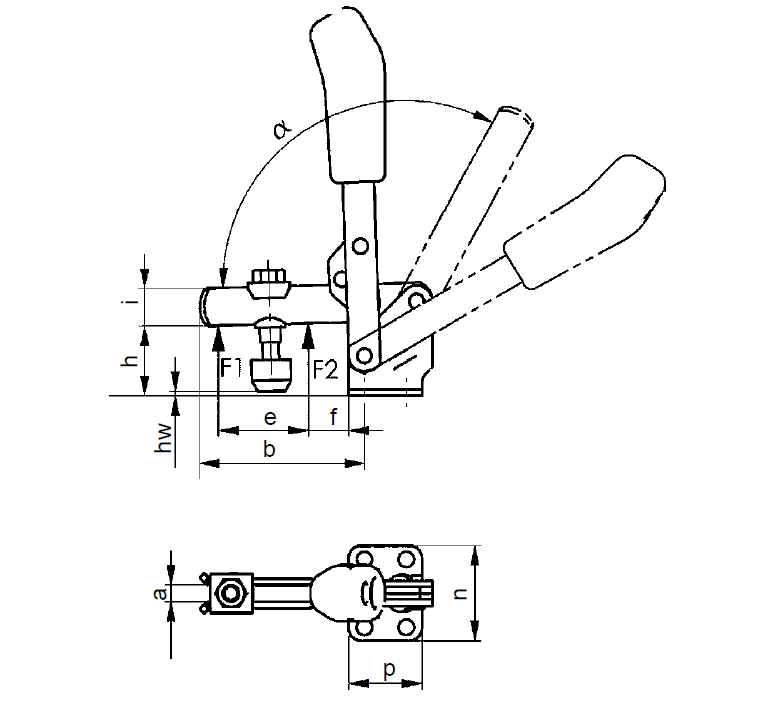

Vertical acting toggle clamp | SM 2000

SCHOLZ MECHANIK GmbH

from €32.09*

€32.09*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

Delivery time: 1-3 days working days

This product is available in 7 versions.

Size

00

01

02

03

04

05

06

To create an offer for this item, please add it to your shopping cart. From there you can create the quote with all the necessary details.

Product number: 12977

Description Datasheet

Variants table
Size	Product number	Unit price	Buy

Product information "Vertical acting toggle clamp | SM 2000"

with open clamping arm
and horizontal base

body: steel
zinc plated and passivated
handle: plastic
high quality oil-resistant, red,
ergonomic handle with large grip surface and soft grip part.
rivets: stainless steel
bushings: case hardened (sizes 2 to 6)
and greased
bearings: pre-lubricated

Safety clamping piece with finger protection, lock washer
for the thrust bolt at the end of the clamping arm.
Change operating angles with adjustable stop-pin.
Complete with tempered, galvanized clamping screw SM 2220.

on request:
Stainless steel version.
Handle parts in yellow, blue, green, orange, black.

Clamp type:	Vertical clamping device
Colour of handle:	black, blue / black, green / black, orange / black, red / black, yellow / black
Material:	Handle - plastic, Steel
Speciality:	Handle - oil resistant, To screw on, With pressure screw, with horizontal base, with open support arm

Accessories

Clamping screw | SM 2201

Clamping screw | SM 2201

for push-pull type toggle clamps Material: ST: steel tempered, tensile strength class 8.8, galvanized and passivated with a bonded pressure padmade of oil resistant neoprenehardness 85 Shore Asilicone-free Application forSM 2000 Vertical acting toggle clamp with horizontal base, with open twin armSM 2010 Vertical acting toggle clamp with vertical base, with open twin armSM 2020 Vertical acting toggle clamp with angle base, with open twin armSM 2030 Vertical acting toggle clamp with horizontal base, with solid armSM 2050 Vertical acting toggle clamp with horizontal base, clamping arm with clamping screwSM 2090 Horizontal acting toggle clamp with horizontal base, with open twin armSM 2100 Horizontal acting toggle clamp with vertical base, with open twin armSM 2110 Horizontal acting toggle clamp with angle base, with open twin armSM 2120 Push-pull type toggle clamp with small angle baseSM 2120-2 Push-pull type toggle clamp, short versionSM 2130 Push-pull type toggle clamp, heavy, with angle baseSM 2190-1 Pneumatic toggle clamp, push typeSM 2260 Supporting arm for toggle clampPlease refer to the datasheet for the exact assignment of sizes.

From €4.08* incl. VAT

Clamping screw | SM 2220

Clamping screw | SM 2220

for open clamping arms Material: ST: steel, tensile strength class 8.8 tempered, galvanized and passivatedNI: stainless steelwith nut and removable protective cap made of NBR + NRare oil-resistant, hardness of 70 Shore Asilicone-freeor vulcanised compression piece (6A) made of neopreneare oil-resistant, hardness of 70 Shore A silicone-free. size 6A: with vulcanized thrust piecesizes 0 - 3: with washer / nut-element sizes 4: with 2 washers (only NI)sizes 4 - 7: with nut for T-slotssizes 6: with washer / nut-element Application forSM 2000 Vertical acting toggle clamp with horizontal base, with open twin armSM 2010 Vertical acting toggle clamp with vertical base, with open twin armSM 2020 Vertical acting toggle clamp with angle base, with open twin armSM 2090 Horizontal acting toggle clamp with horizontal base, with open twin armSM 2100 Horizontal acting toggle clamp with vertical base, with open twin armSM 2110 Horizontal acting toggle clamp with angle base, with open twin armSM 2260 Supporting arm for toggle clampPlease refer to the datasheet for the exact assignment of sizes.

From €9.48* incl. VAT

Clamping screw | SM 2230

Clamping screw | SM 2230

Self-aligningfor open twin-arm Material: ST: steel tempered, galvanized, passivated with nut and thrust padsize 1 - 3: with washer/nut-elementsize 4 - 6: with T-nut Application forSM 2000 Vertical acting toggle clamp with horizontal base, with open twin armSM 2010 Vertical acting toggle clamp with vertical base, with open twin armSM 2020 Vertical acting toggle clamp with angle base, with open twin armSM 2090 Horizontal acting toggle clamp with horizontal base, with open twin armSM 2100 Horizontal acting toggle clamp with vertical base, with open twin armSM 2110 Horizontal acting toggle clamp with angle base, with open twin armSM 2260 Supporting arm for toggle clampPlease refer to the datasheet for the exact assignment of sizes.

From €23.78* incl. VAT

Clamping screw, spring type | SM 2240

Clamping screw, spring type | SM 2240

Spring loaded screwfor open ended clamping arms Material: ST: steel tempered, galvanized and passivated with U-washers and protective cap SM 2250 made of oil-resistant neoprenehardness 70 Shore A Application forSM 2000 Vertical acting toggle clamp with horizontal base, with open twin armSM 2010 Vertical acting toggle clamp with vertical base, with open twin armSM 2020 Vertical acting toggle clamp with angle base, with open twin armSM 2090 Horizontal acting toggle clamp with horizontal base, with open twin armSM 2100 Horizontal acting toggle clamp with vertical base, with open twin armSM 2110 Horizontal acting toggle clamp with angle base, with open twin armSM 2260 Supporting arm for toggle clampPlease refer to the datasheet for the exact assignment of sizes.

From €42.23* incl. VAT

Protection cap | SM 2250

Protection cap | SM 2250

Rubber nosefor clamping screws Material: Neopren hardness 70 Shore Aoil resistant to prevent damage to delicate components.Fits the clamping screw SM 2200, SM 2205, SM 2220 and SM 2240,for placement on hexagon screw head ISO 272. size 6: According to new standard ISO 4017, marked with a „6“ on its clamping face.size 7: According to old norm DIN 933.

From €1.95* incl. VAT

Supporting arm | SM 2260

Supporting arm | SM 2260

for toggle clamps Material: ST: steelgalvanized and passivated Complete with two tempered clamping screws SM 2220,Protection caps and fastening screw. With this supporting arm, there is the choice of clamping two small work pieces or one large work piece at two points.

From €34.70* incl. VAT

Clamping arm extension | SM 2261

Clamping arm extension | SM 2261

for manual tensioner Material: Aluminium Complete with fastening bolt.Without clamping screw.Can be shortened to desired length.For toggle clamps with open holding armSM 2000 SM 2010 SM 2020 SM 2090 SM 2100 SM 2110.

From €41.07* incl. VAT

Clamping arm extension | SM 2262

Clamping arm extension | SM 2262

for manual tensioner Material: steel blued Complete with fastening screw.Without clamping screw. For toggle clamps with open holding armSM 2000SM 2010SM 2020SM 2090SM 2100SM 2110.

From €27.29* incl. VAT
