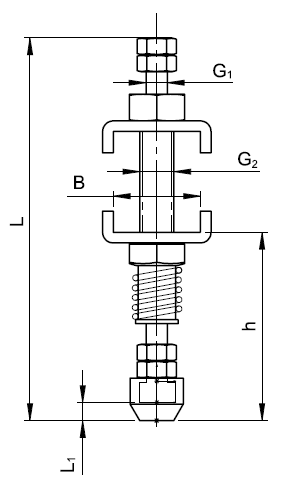

Clamping screw, spring type | SM 2240

SCHOLZ MECHANIK GmbH

from €40.67*

€40.67*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

Delivery time: See variant in the table

This product is available in 4 versions.

Show all variants

Size

03,00

04,00

05,00

06,00

Product number: 13092

Description Datasheet

Size	Product number	Unit price	Buy

Product information "Clamping screw, spring type | SM 2240 "

Spring loaded screw
for open ended clamping arms

Material:
ST: steel
tempered, galvanized and passivated

with U-washers and
protective cap SM 2250
made of oil-resistant neoprene
hardness 70 Shore A

Application for
SM 2000 Vertical acting toggle clamp with horizontal base, with open twin arm
SM 2010 Vertical acting toggle clamp with vertical base, with open twin arm
SM 2020 Vertical acting toggle clamp with angle base, with open twin arm
SM 2090 Horizontal acting toggle clamp with horizontal base, with open twin arm
SM 2100 Horizontal acting toggle clamp with vertical base, with open twin arm
SM 2110 Horizontal acting toggle clamp with angle base, with open twin arm
SM 2260 Supporting arm for toggle clamp
Please refer to the datasheet for the exact assignment of sizes.

Clamp type:	Accessories
Material:	Steel
Speciality:	With protective cap
