Clamping screw | SM 2220

SCHOLZ MECHANIK GmbH

Material	Size	Product number	Unit price	Buy

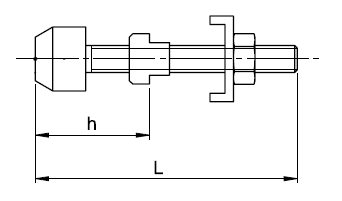

Product information "Clamping screw | SM 2220 "

for open clamping arms

Material:
ST: steel, tensile strength class 8.8
tempered, galvanized and passivated
NI: stainless steel

with nut and
removable protective cap made of NBR + NR
are oil-resistant, hardness of 70 Shore A
silicone-free
or
vulcanised compression piece (6A) made of neoprene
are oil-resistant, hardness of 70 Shore A
silicone-free.

size 6A: with vulcanized thrust piece

sizes 0 - 3: with washer / nut-element
sizes 4: with 2 washers (only NI)
sizes 4 - 7: with nut for T-slots
sizes 6: with washer / nut-element

Application for
SM 2000 Vertical acting toggle clamp with horizontal base, with open twin arm
SM 2010 Vertical acting toggle clamp with vertical base, with open twin arm
SM 2020 Vertical acting toggle clamp with angle base, with open twin arm
SM 2090 Horizontal acting toggle clamp with horizontal base, with open twin arm
SM 2100 Horizontal acting toggle clamp with vertical base, with open twin arm
SM 2110 Horizontal acting toggle clamp with angle base, with open twin arm
SM 2260 Supporting arm for toggle clamp
Please refer to the datasheet for the exact assignment of sizes.

Clamp type:	Accessories
Material:	Stainless steel, Steel
Speciality:	With protective cap
