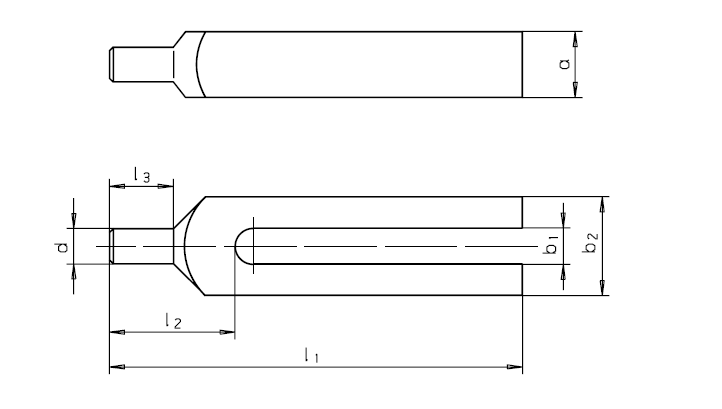

Forked clamp - DIN 6315 C | SM 1075

SCHOLZ MECHANIK GmbH

Length 1	Material	Width 1	Product number	Unit price	Buy

Product information "Forked clamp - DIN 6315 C | SM 1075 "

with pin end
DIN 6315 C

Material:
heat treated steel
varnished

RoHS-compliant: yes

The large clamping range enables flexible use when clamping workpieces and components, e.g. in fixture construction, mechanical engineering and toolmaking.

DIN / ISO:	DIN 6315
Element type:	Clamping iron
Material:	Quenched and tempered steel
Surface:	varnished
Type:	Mechanical clamping elements
