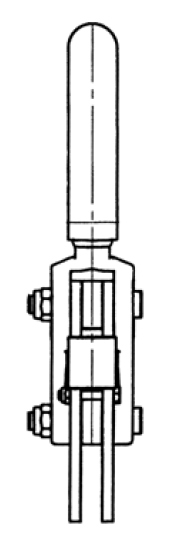

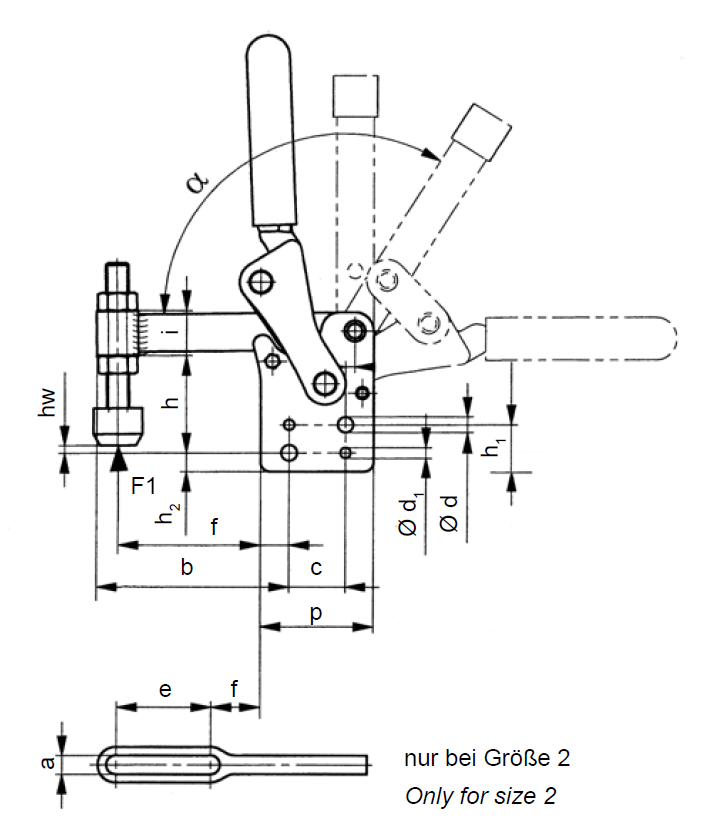

Heavy vertical toggle clamp | SM 2070

SCHOLZ MECHANIK GmbH

from €174.13*

€174.13*

Prices incl. VAT plus shipping costs

Available in 5 days

Delivery time: See variant in the table

This product is available in 4 versions.

Show all variants

Size

02,00

04,00

06,00

08,00

Product number: 238149

Description Datasheet

Size	Product number	Unit price	Buy

Product information "Heavy vertical toggle clamp | SM 2070"

with solid arm
and vertical base and mounting holes

Material:
body: steel blackened
lever arm: cast steel, blackened
handle: plastic,
high quality oil-resistant, red
bearing bushes: reamed and case-hardened
pins: hardened ground and permanently-lubricated

Designed for mounting any clamping elements.
Clamping nut on the lever arm for adjustable movement.
Complete with tempered, galvanized clamping screw SM 2205.
Version like SM 2060.

These heavy vertical toggle clamps are especially suitable for production equipment and fixtures.

Clamp type:	Vertical clamping device
Colour of handle:	red
Material:	Cast steel, Handle - plastic, Steel
Speciality:	Handle - oil resistant, Heavy tensioner, To screw on, with fixed pressing screw, with massive support arm, with vertical base
