Indexing plunger | SM 1271

SCHOLZ MECHANIK GmbH

Variants table
Diameter 2	Form	Product number	Unit price	Buy

Product information "Indexing plunger | SM 1271 "

Stop bolt
with hexagon collar
with or without rest position

Material:
ST: steel, blackened
plunger pin hardened
knob:
not removable
KU: plastic (Polyamide PA) black, matt finish

NI: stainless steel, 1.4305 / AISI 303
plunger chemically nickel plated
knob:
not removable
KU: plastic (Polyamide PA) black, matt finish
NI: stainless steel / AISI 303
Compression spring: stainless steel 1.4310
Lock nut ISO 8675: stainless steel A2

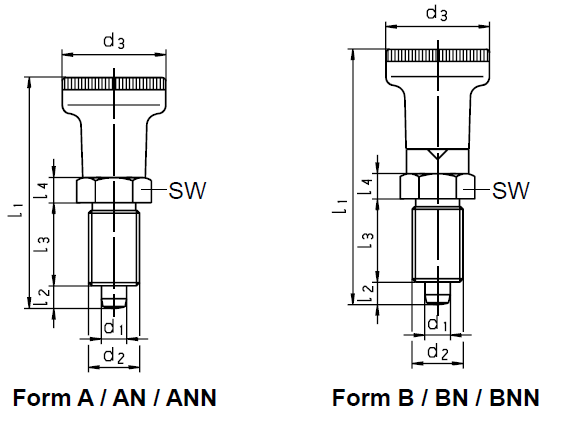

Form A: steel, without rest position, without lock nut, with knob KU

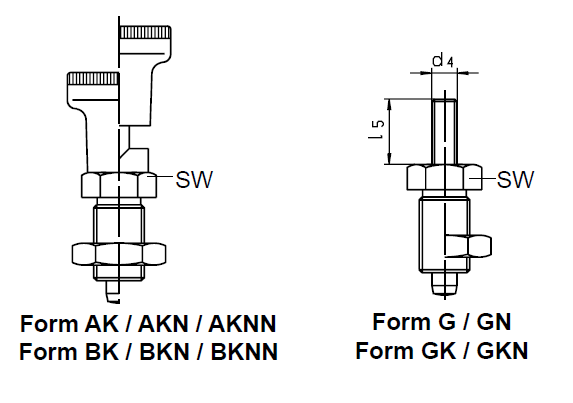

Form AK: steel, without rest position, with lock nut, with knob KU
Form AN: stainless steel, without rest position, without lock nut, knob KU
Form AKN: stainless steel, without rest position, with lock nut, knob KU
Form ANN: stainless steel, without rest position, without lock nut, knob NI
Form AKNN: stainless steel, without rest position, with lock nut, with knob NI

Form B: steel, with rest position, without lock nut, with knob KU
Form BK: steel, with rest position, with lock nut, with knob KU
Form BN: stainless steel, with rest position, without lock nut, with knob KU
Form BKN: stainless steel, with rest position, with lock nut, with knob KU
Form BNN: stainless steel, with rest position, without lock nut, knob NI
Form BKNN: stainless steel, with rest position, with lock nut, knob NI

Form G: steel, without rest position, without lock nut, with threaded rod
Form GK: steel, without rest position, with lock nut, with threaded rod
Form GN: stainless steel, without rest position, without lock nut, with threaded rod
Form GKN: stainless steel, without rest position, with lock nut, with threaded rod

The SM 1271 locking pins with threaded studs (form G or GK) are used when the locking pin is not operated with the standard knob.
The indexing plungers are designed such that the plunger set in the end position can also absorb axial forces.
Distance bushings see SM 1273-6.

RoHS-compliant: yes

Colour:	Knob / Handle: black
Compliance:	RoHS compliant
Material:	Body: stainless steel, Body: steel, Knob / Handle: Plastic, Knob / Handle: Stainless Steel
Speciality:	With detent lock, With knurling, With lock nut, Without detent lock, with hexagon collar, with knob / handle, without knob / handle, without lock nut
Surface:	Stainless steel - bright, Steel - burnished
Type of use:	Bolt, Indexing plunger / indexing pin
