Indexing plunger | SM 1273-1
from €8.64*
€8.72*
Available in 5 days
Available in 5 days
This product is available in 6 versions.
Product information "Indexing plunger | SM 1273-1 "
Stop bolt
without thread
for welding
Material:
ST:
body / plunger pin: steel, blackened, welding quality
plunger pin: hardened
knob:
not removable
KU: plastic (Polyamide PA) black, matt finish

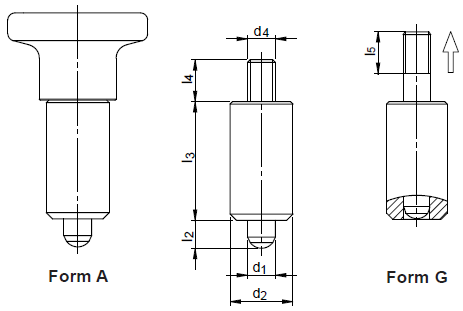

Form A: with knop
Form G: with threaded stud
A special feature of indexing plungers SM 1273-1 are for applications where welding, resin bonding (loctite) or clamping is favoured.
The Indexing plungers with threaded studs (form G) are used when the locking pin is not operated with the standard knob.
The indexing plungers are designed in such a way that they can also absorb axial forces in the end position.
RoHS-compliant: yes
| Colour: | Knob / Handle: black |
|---|---|
| Compliance: | RoHS compliant |
| Material: | Body: steel, Knob / Handle: Plastic, Steel, Thermoplastic |
| Speciality: | Threaded stud, With knurling, weldable, with knob / handle, without knob / handle |
| Surface: | Steel - burnished |
| Type of use: | Bolt, Indexing plunger / indexing pin |
