Indexing plunger | SM 1273-3

SCHOLZ MECHANIK GmbH

from €14.38*

€14.38*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

This product is available in 8 versions.

Diameter 2

M12x1,5

M16x1,5

Form

AKN

To create an offer for this item, please add it to your shopping cart. From there you can create the quote with all the necessary details.

Product number: 30330

Description Datasheet

Variants table
Diameter 2	Form	Product number	Unit price	Buy

Product information "Indexing plunger | SM 1273-3"

Stop bolt
with rest position

Material:
ST:
body / plunger pin: steel, blackened
plunger pin tip hardened
nnob:
not removable
KU: plastic (Polyamide PA) black, matt finish
pressure spring: stainless steel 1.4310 / AISI 302
low lock nut SM 1291-123: steel, blackened

NI:
body / plunger pin: stainless steel 1.4305 / AISI 303
locking pin chemically nickel-plated
knob:
not removable
KU: plastic (Polyamide PA) black, matt finish
pressure spring: stainless steel 1.4310 / AISI 302
low lock nut SM 1291-123: stainless steel 1.4305 / AISI 303

Form A: steel, without lock nut
Form AK: steel, with lock nut
Form AN: stainless steel, without lock nut
Form AKN: stainless steel, with lock nut

These indexing plungers with detent lock are used
when the detent pin should not protrude temporarily.

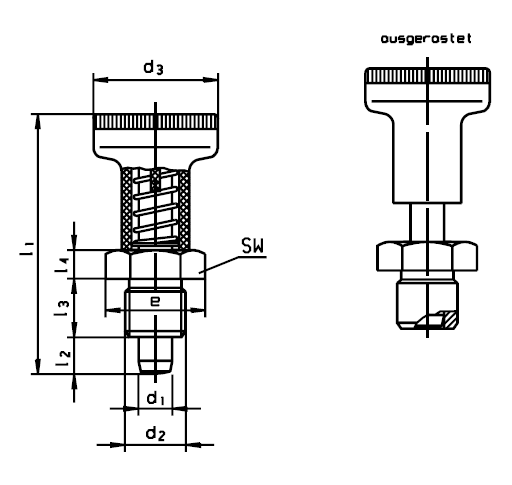

To do this, the knob is rotated by 90° after the pin has been retracted.
A detent notch allows the knob to be held in this position.
The catch is integrated into the knob, so it always functions perfectly.
The locking pins are characterized by their small dimensions.
The very low lock nuts extend the mounting options.

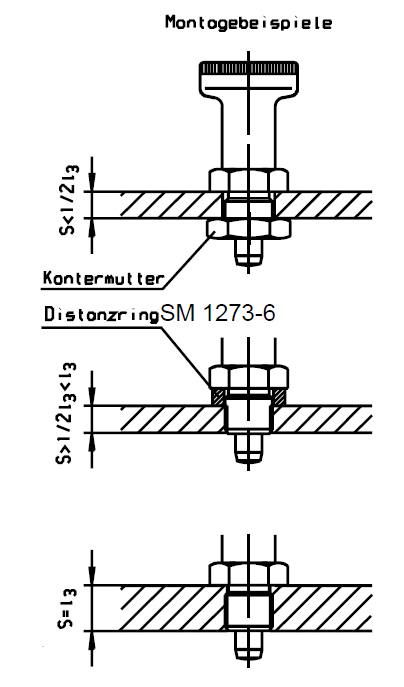

For spacer rings, see SM 1273-6.

RoHS-compliant: yes

Colour:	Knob / Handle: black
Compliance:	RoHS compliant
Material:	Body: stainless steel, Body: steel, Knob / Handle: Plastic, Stainless steel, Steel, Thermoplastic
Speciality:	With detent lock, With knurling, Without detent lock, with knob / handle, without lock nut
Surface:	Stainless steel - bright, Steel - zinc plated
Type of use:	Bolt, Indexing plunger / indexing pin

Accessories

Positioning bushing | SM 1273-56

with hexagonal collarfor indexing plungers / cam action indexing plungers Material:ST: steelhardened, blackenedNI: stainless steel 1.4057 / AISI 431hardened Positioning bushings SM 1273-56 are used in connection with bolts of indexing plungers.The threads are adapted to the mounting blocks SM 1274-1 and SM 1274-10. RoHS-compliant: yes

From €3.77* incl. VAT

Details

Positioning bushing | SM 1273-57

with ramping conefor indexing plungers Material:ST: steelhardened, blackenedNI: stainless steel 1.4057 / AISI 431hardened for indexing plungers / cam action indexing plungers, with hexagonal collarPositioning bushings SM 1273-57 are used in connection with bolts of indexing plungers.The threads are adapted to the mounting blocks SM 1274-1 and SM 1274-10. RoHS-compliant: yes

From €6.78* incl. VAT

Details

Distance bushing | SM 1273-6

Spacer ringfor indexing plungers Material:NI: stainless steel 1.4305 / AISI 303 Distance bushings SM 1273-6 compensate for the body thread lengths on the indexing plungers and cam action indexing plungers a to allow mounting through walls of varying thickness.Other dimensions and forms see SM 1000-03. RoHS-compliant: yes

From €0.45* incl. VAT

Details

Mounting block | SM 1274-1

for Indexing Plungers / Cam Action Indexing Plungers Material:ST: steel, blackenedgrub screw from steel SM 1239-1 with brass padNI: stainless steel, 1.4305 / AISI 303grub screw from stainless steel SM 1239-1 with brass pad Form A: fixing holes parallel to plungerForm AN: fixing holes parallel to plunger, mounting block from stainless steelForm B: fixing holes vertical to plungerForm BN: fixing holes vertical toplunger, mounting block from stainless steel Mounting blocks broaden the mounting possibilities and are an added feature for the cam action indexing plungers SM 1274. They can also be used with indexing plungers SM 1273. RoHS-compliant: yes

From €14.58* incl. VAT

Details

Mounting block | SM 1274-10

Retaining piecesfor indexing plungers / cam action indexing plungers Material:zinc die casting,powder coated, black, textured finish Form A: mounting from the backForm B: mounting from the front Mounting perpendicular to the latching pin.Mounting blocks / retaining pieces are mounting aid for indexingplungers, indexing plungers, stop buffers and stop screws and extendtheir range of application.They can also accommodate positioning bushes SM 1273-56for positioning the indexing pin of an indexing plunger or indexing plunger. RoHS-compliant: yes

From €5.37* incl. VAT

Details

Hexagon nut, flat type | SM 1291-123

Hexagon nut, flat typefor Indexing plungers / Cam action indexing plungers Material:NI: stainless steel 1.4305ST: steel, blackened With their smaller dimensions, flat hexagon nuts SM 1291-123 expandthe mounting options of indexing plungers and cam action indexing plungers. RoHS-compliant: yes

From €0.45* incl. VAT

Details
