Indexing plunger without hexagon collar / Stop bolt | SM 1273

SCHOLZ MECHANIK GmbH

Diameter 2	Form	Product number	Unit price	Buy

Product information "Indexing plunger without hexagon collar / Stop bolt | SM 1273"

Indexing plunger without hexagon collar
Stop bolt

Material:
ST: steel, blackened, plunger hardened
NI: stainless steel 1.4305, plunger chemically nickel plated
knob:
KU: plastic (Polyamid PA) black, matt finish, not removable
NI: stainless steel, not removable

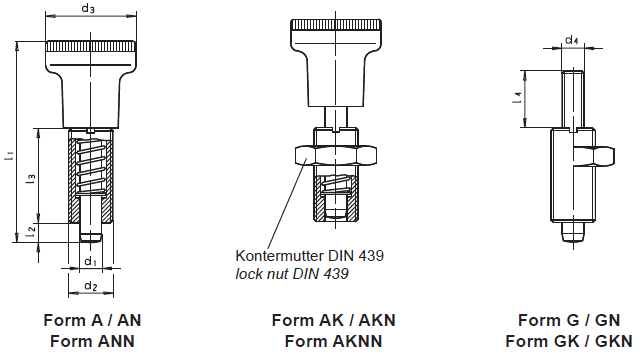

Form A: steel, without rest position, without lock nut, with knob plastic
Form AK: steel, without rest position, with lock nut, with knob plastic
Form AN: stainless steel, without rest position, without lock nut, with knob plastic
Form AKN: stainless steel, without rest position, with lock nut, with knob plastic
Form ANN: stainless steel, without rest position, without lock nut, with knob stainless steel
Form AKNN: stainless steel, without rest position, with lock nut, with knob stainless steel

Form G: steel, without lock nut, with threaded rod, without knob
Form GK: steel, with lock nut, with threaded rod, without knob
Form GN: stainless steel, without lock nut, with threaded rod, without knob
Form GKN: stainless steel, with lock nut, with threaded rod, without knob

Distance bushings see SM 1273-6.

RoHS-compliant: yes

Colour:	Knob / Handle: black
Compliance:	RoHS compliant
Material:	Body: stainless steel, Body: steel, Knob / Handle: Plastic, Knob / Handle: Stainless Steel, Stainless steel, Steel
Speciality:	With knurling, With lock nut, Without detent lock, with knob / handle, without knob / handle, without lock nut
Surface:	Stainless steel - bright, Steel - burnished
Type of use:	Bolt, Indexing plunger / indexing pin
