Ball lock pin | SM 1273-8

SCHOLZ MECHANIK GmbH

Colour	Diameter 1	Length 1	Product number	Unit price	Buy

Product information "Ball lock pin | SM 1273-8 "

self-locking
Stainless steel 1.4542

Material:
stainless steel
pin part: stainless steel 1.4542, precipitation-hardened (marking**)
handle: thermoplastic (PA 6)
spring: stainless steel

handle:
BL = grey / blue
OR = grey / orange
GR = grey / grey
SW = black / black

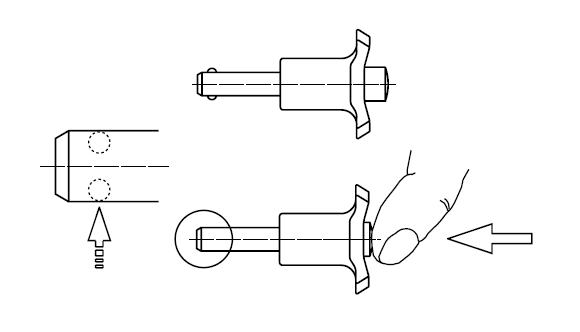

Pressing = unlocking
For quickly fastening and securing parts and workpieces.
Quickly and easily unlockable for frequently repeated connections,
for example interchangeable bearing pins.
Temperature range from -30 °C up to +80 °C.
Possibility of Attachment for retain cable SM 1273-86.

Characteristics
Version in stainless steel 1.4542 with marking below the balls.

RoHS-compliant: yes

The values for Shearing resistance (two-shear) similar to DIN 50141 in the table (see data sheet) are non-binding guidelines.
The suitability of the product must be determined by the user for each application.
Liability is excluded.

Colour:	Handle: black / black, Handle: gray / blue, Handle: gray / grey, Handle: gray / orange
Compliance:	RoHS compliant
Material:	Bolt: Stainless steel, Knob / Handle: Plastic, Stainless steel, Thermoplastic, Type B - stainless steel 1.4542, precipitation hardened
Speciality:	Pressing the button = unlocking, Type B - Bolt high strength, extreme loadable, With releasing knob, self-locking
Surface:	Stainless steel - bright
Type of use:	Bolt, Plug-in bolt / ball lock pin

Accessories

Locating bushing | SM 1273-66

Locating bushing | SM 1273-66

with flangefor ball lock pins and socket pins Material:stainless steel 1.4305 Form A: with oval flangeForm B: with round flange Well suited for use with thin-walled components, e.g. in vehicle construction or aviation. The contact surface of the flange ensures optimum force distribution for components with low wall thicknesses.All versions are corrosion-resistant and wear-resistant. RoHS-compliant: yes

From €15.91* incl. VAT

Locating bushing | SM 1273-67

Locating bushing | SM 1273-67

plain for lifting pins Material:stainless steel 1.4542 precipitation-hardened RoHS-compliant: yes Fast and secure mounting for the SM 1273-83 lifting pin.Used when a flat surface is required when screwed in, or for thin-walled parts and blind holes.A face spanner (SM 1273-67 ST) is required for installation.

From €39.75* incl. VAT

Face and socket wrench | SM 1273-67 ST

Face and socket wrench | SM 1273-67 ST

Face and socket wrench for locating bushings for lifting pins SM 1273-67 Material: steel Form STV: adjustable face spanner, offsetSTV 1 for diameter d1 = 8, 10, 12STV 2 for diameter d1 = 16, 20, 25 Form STS: face and socket wrenchSTS 1 for diameter d1 = 8 STS 2 for diameter d1 = 10STS 3 for diameter d1 = 12STS 4 for diameter d1 = 16 und 20

From €16.52* incl. VAT

Locating bushing | SM 1273-68

Locating bushing | SM 1273-68

with hexagonal collarfor lifting pins Material:stainless steel 1.4542 precipitation-hardened Fast and secure mounting for SM 1273-83 lifting pins, suitable for blind holes.Corrosion-resistant and wear-resistant. RoHS-compliant: yes

From €39.75* incl. VAT

Locating bushing | SM 1273-69

Locating bushing | SM 1273-69

with collar for ball lock pins and socket pins Material:stainless steel 1.4305 Form A: with outer hexagonForm B: internal hexagonForm C: plain, with front hole optimized centering due to precise collar Easy installation, precise collar allows for good centering.Can be installed in various substrate materials,can also be used with thin-walled components,can be used on both sides.Form C with face hole is suitable for applications that require a flat surface when screwed in.All versions are corrosion-resistant and wear-resistant. Assembly: Form C with face hole can be installed with a cranked face pin wrench (SM 1273-67 STV 2) or with a face pin socket wrench (SM 1273-67 STS 4 or SM 1273-67 STS 5). RoHS-compliant: yes

From €15.78* incl. VAT

Retaining cable | SM 1273-86

Retaining cable | SM 1273-86

with ring or eyelet Material:stainless steel coated with clear PVCring / eyelet stainless steel Form A: with two attaching ringsForm B: with attaching ring and eyelet This safety cable and retaining ring is designed to secure the single-acting ball lock pin SM1273-8 and SM1273-82, as well as clamping pin SM1273-84, and socket pin SM 1273-78/79, SM1273-85 against possible loss. The safety cable can be attached to the component by means of an M05 screw. The temperature range is up to +80 °C. RoHS-compliant: yes

From €4.68* incl. VAT

Ball Chain | SM 1273-87

Ball Chain | SM 1273-87

with two key rings Material:key ring: stainless steel 1.4310MS: brass, nickel platedNI: stainless steel 1.4301 Type A: The key rings are supplied unmounted, both rings have the same Ø d1. This safety cable and retaining ring is designed to secure the single-acting ball lock pin SM1273-8 and SM1273-82, as well as clamping pin SM1273-84, and socket pin SM 1273-78/79, SM1273-85 against possible loss. RoHS-compliant: yes

From €1.99* incl. VAT
