Clamp lock pin | SM 1273-75

SCHOLZ MECHANIK GmbH

Diameter 1	Length 1	Type	Product number	Unit price	Buy

Product information "Clamp lock pin | SM 1273-75 "

with button handle

Material:
spring: stainless steel
handle: Aluminium, black, similar to RAL 9005
push-button: case-hardened steel, nitrided, yellow similar to RAL 1016
pin part:
Typ A: stainless steel 1.4305
Typ B: stainless steel 1.4542, precipitation-hardened (marking**)

All versions are corrosion-resistant.
Type B made of stainless steel 1.4542 is a high-strength, hardened, abrasion resistant pin with high load capacity.
Temperature range from -30 °C up to +150 °C.

Pressing = unlocking

For rapid fastening, locking, adjusting, replacing, and securing in blind holes (H11)
without additional locating bushings.
Quickly and easily unlockable for frequently repeated connections.
The clamp lock pin must not be used for lifting loads.
Fastening option for retaining cable SM 1273-86.

Characteristic

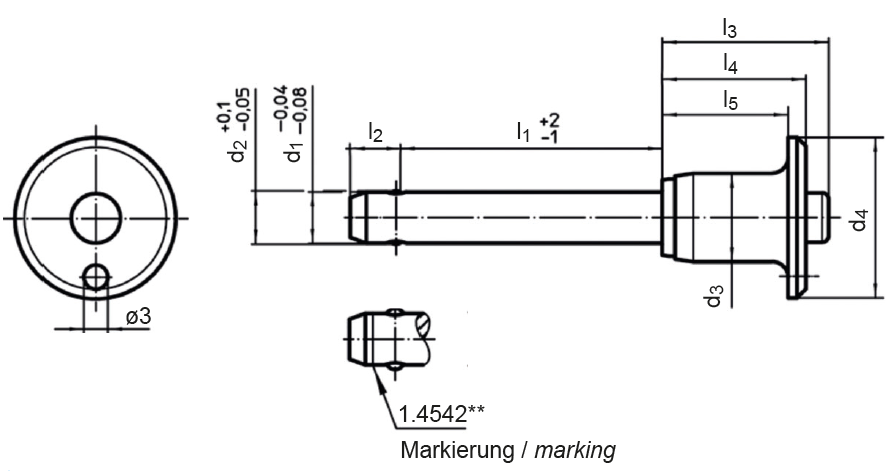

Types from stainless steel 1.4542 with marking below the balls.

RoHS-compliant: Non-RoHS compliant

The values for shearing resistance (two-shear) similar to DIN 50141 in the table (see data sheet) are non-binding guidelines.
The suitability of the product must be determined by the user for each application.
Liability is excluded.

Colour:	Disengagement button: yellow, Knob / Handle: black
Compliance:	Non-RoHS compliant
Material:	Bolt: Stainless steel, Knob / Handle: Aluminum, Stainless steel, Type A - stainless steel 1.4305, Type B - stainless steel 1.4542, precipitation hardened
Speciality:	Pressing the button = unlocking, Type B - Bolt high strength, extreme loadable, With releasing knob, self-locking
Type of use:	Plug-in bolt / ball lock pin
