Locking Pin | SM 1273-79

SCHOLZ MECHANIK GmbH

Diameter 1	Length 1	Product number	Unit price	Buy

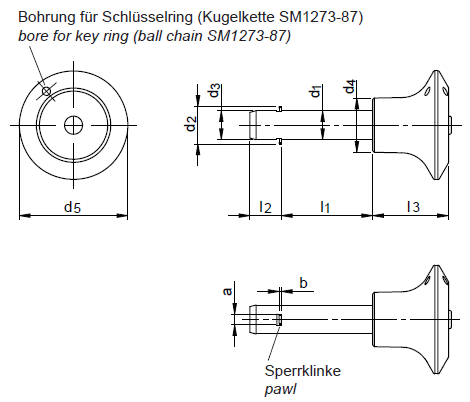

Product information "Locking Pin | SM 1273-79 "

with axial lock (pawl)
stainless steel

Material:
plunger: stainless steel 1.4305
pawl: stainless steel 1.4301
knob, push button, push rod: stainless steel 1.4305
spring: stainless steel1.4310

Pressing = unlocking
The locking pins with axial locking are used for quick fixing, connecting and securing various components.
Used, for example, as bearing pins that need to be frequently assembled and disassembled.
High axial forces are absorbed by the rectangular shape of the locking pawls made of stainless steel sheet.

The values in the table (see data sheet) for shear load capacity
are theoretically determined and non-binding guidelines without taking a safety factor into account.
The suitability of the product must be determined by the user for each application.
Liability is excluded.

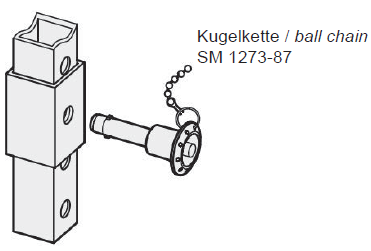

It can easily be fitted with the ball chains SM1273-87.

RoHS-compliant: yes

Compliance:	RoHS compliant
Material:	Bolt: Stainless steel, Knob / Handle: Stainless Steel, Stainless steel
Speciality:	Pressing the button = unlocking, With releasing knob, with axial locking
Surface:	Stainless steel - bright
Type of use:	Bolt, Plug-in bolt / ball lock pin
