Ball lock pin | SM 1237-70

SCHOLZ MECHANIK GmbH

Diameter 1	Length 1	Type	Product number	Unit price	Buy

Product information "Ball lock pin | SM 1237-70 "

Ball lock bolt
self-locking
adjustable clamping length

Material:
spring: stainless steel
adjusting nut: thermoplastic, silver
lock nut: thermoplastic, black
pin part:
Type A: stainless steel 1.4305
Type B: stainless steel 1.4542, precipitation-hardened (marking **)

All versions are corrosion-resistant.
Type B made of stainless steel 1.4542 is a high-strength, hardened, abrasion resistant pin with high load capacity.
Temperature range from - 30 °C up to + 80 °C.

Pressing = unlocking
For fixing and clamping two parts or for play-free attachment to the counterpart.
The clamping range can be continuously adjusted by hand using nuts/lock nuts.
Fastening option for retaining cable SM 1273-86.

Characteristics

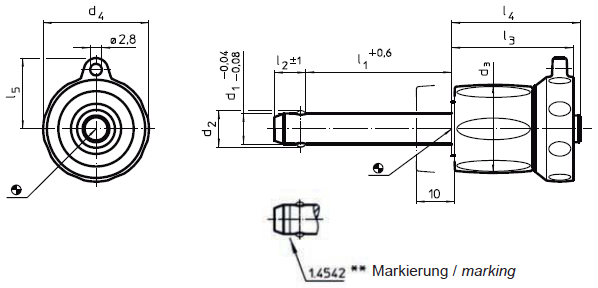

Types from stainless steel 1.4542 with marking below the balls.

RoHS-compliant: yes

The values for shear strength (two-cut) similar to DIN 50141 in the table (see data sheet) are non-binding guidelines.
The suitability of the product must be determined by the user for each application.
Liability is excluded.

Colour:	Knob / Handle: grey
Compliance:	RoHS compliant
Material:	Bolt: Stainless steel, Knob / Handle: Plastic, Stainless steel, Thermoplastic, Type A - stainless steel 1.4305, Type B - stainless steel 1.4542, precipitation hardened
Speciality:	Pressing the button = unlocking, Type B - Bolt high strength, extreme loadable, self-locking, with rotating handle
Type of use:	Bolt, Plug-in bolt / ball lock pin
